Code: 474911

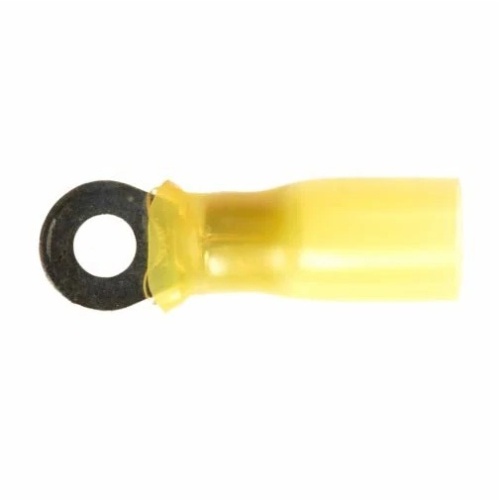

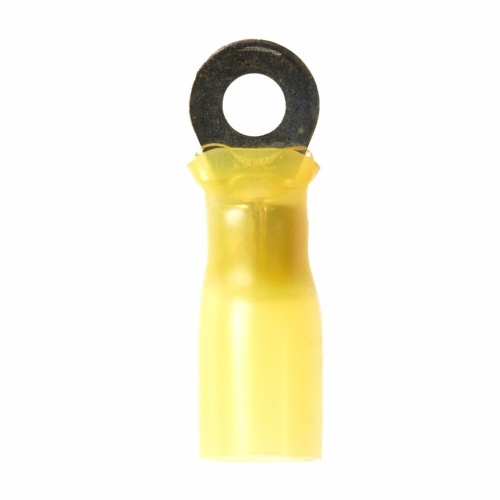

3M 7000133395 - Scotchlok™ Ring Heatshrink, 25/bottle, MH18-8R/LX, standard-style,ring tongue fits around the stud
Normally In Stock
Scotchlok™ Ring Heatshrink, 25/bottle, MH18-8R/LX, standard-style,ring tongue fits around the stud - 7000133395
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$43.14
Sale Price
$35.95
SOLD BY THE CASE (1 Case = 125 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals, MH18-8R/LX, are heat shrink insulated and suitable for crimp connections. With a maximum operating temperature of 105 ℃, they accommodate conductor sizes ranging from 18 to 22 AWG (0.326 to 0.823 mm²). These red terminals have an overall length and width of 1 in (25.4 mm) and 0.31 in (7.87 mm), respectively, and a connection width of 0.164 in (4.166 mm). - 7000133395
Specifications
Color
Red
Component
Ring Terminal
Manufacturer
3M
Overall Length (Imperial)
1 In
Overall Length (Metric)
25.4 mm
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
0.326 mm²
Insulation Material
Heat Shrink
Terminal Type
Ring
Maximum Conductor Size (Metric)
0.823 mm²
Features
Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
