Code: 474910

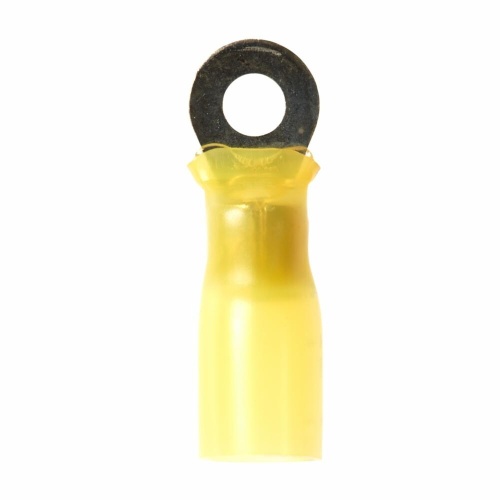

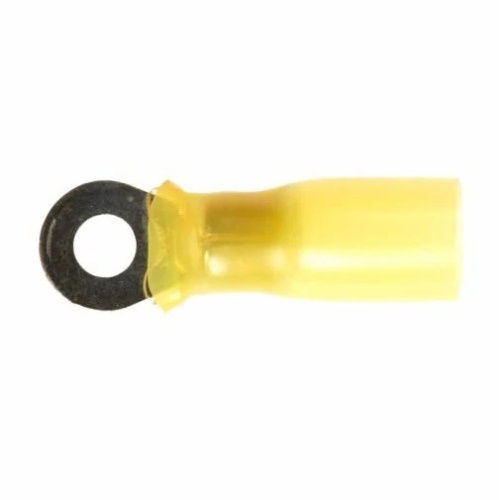

3M 7000133393 - Scotchlok™ Ring Heatshrink, 25/bottle, MH18-6R/LX, standard-style,ring tongue fits around the stud
Normally In Stock
Scotchlok™ Ring Heatshrink, 25/bottle, MH18-6R/LX, standard-style,ring tongue fits around the stud - 7000133393
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$43.14
Sale Price
$35.95
SOLD BY THE CASE (1 Case = 125 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals (MH18-6R/LX) are heat shrink insulated and designed for crimp connection. They have an overall length of 1 in (25.4 mm) and an overall width of 0.31 in (7.87 mm). These red terminals can accommodate conductor sizes ranging from 22 AWG (0.326 mm²) to 18 AWG (0.823 mm²). With a maximum operating temperature of 105 ℃, they provide reliable electrical connections. - 7000133393
Specifications
Color
Red
Component
Ring Terminal
Manufacturer
3M
Overall Length (Imperial)
1 In
Overall Length (Metric)
25.4 mm
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
0.326 mm²
Insulation Material
Heat Shrink
Terminal Type
Ring
Maximum Conductor Size (Metric)
0.823 mm²
Features
Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
