Code: 474904

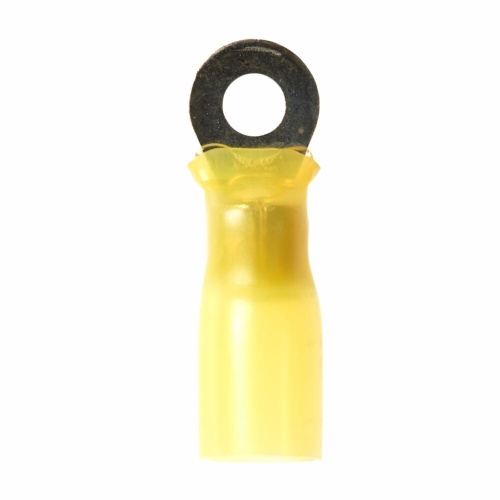

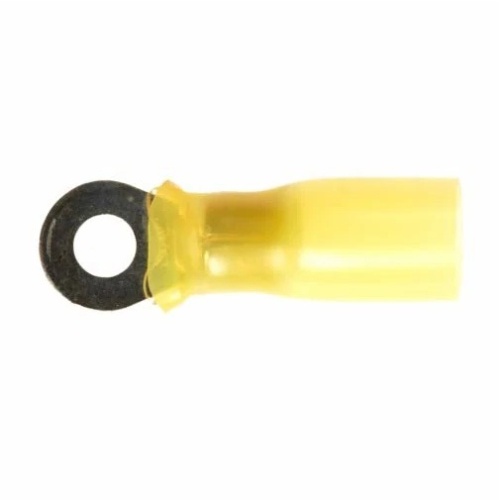

3M 7000133388 - Scotchlok™ Ring Heatshrink, 25/bottle, MH14-14R/SX, standard-style,ring tongue fits around the stud
Normally In Stock
Scotchlok™ Ring Heatshrink, 25/bottle, MH14-14R/SX, standard-style,ring tongue fits around the stud - 7000133388
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$55.68
Sale Price
$46.40
SOLD BY THE CASE (1 Case = 125 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals (MH14-14R/SX) are heat shrink insulated for reliable performance. They have an overall length of 1.1 in (27.94 mm) and a blue color. These terminals can handle a maximum conductor size of 14 AWG (2.08 mm²) and a minimum conductor size of 16 AWG (1.31 mm²). They are designed for crimp connection with a connection width of 0.25 in (6.35 mm). Rated for temperatures up to 105 ℃. - 7000133388
Specifications
Color
Blue
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Insulation Material
Heat Shrink
Overall Length (Imperial)
1.1 In
Terminal Type
Ring
Overall Length (Metric)
27.94 mm
Features
Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
