Code: 474901

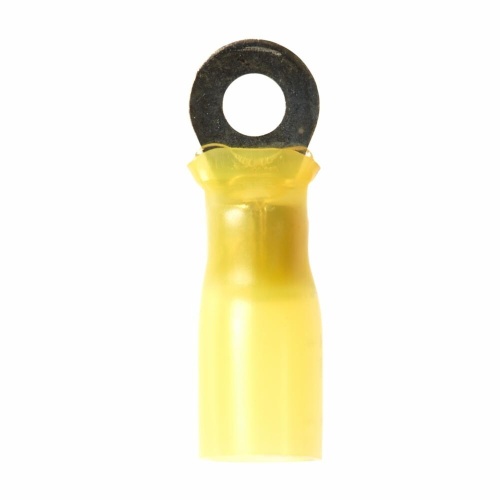

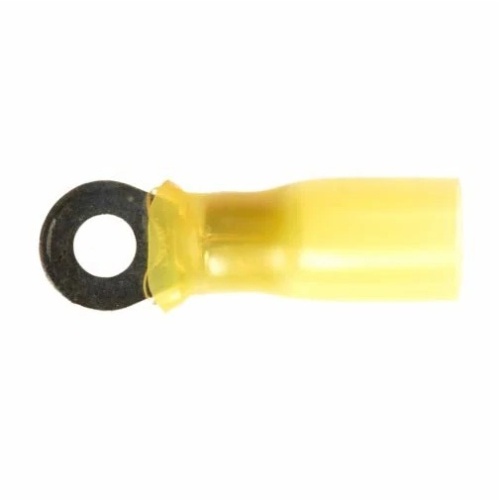

3M 7000133381 - Scotchlok™ Ring Heatshrink, 25/bottle, MH10-38RX, standard-style,ring tongue fits around the stud
Normally In Stock
Scotchlok™ Ring Heatshrink, 25/bottle, MH10-38RX, standard-style,ring tongue fits around the stud - 7000133381
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$55.68
Sale Price
$46.40
SOLD BY THE CASE (1 Case = 125 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals, 3MCatalog Number MH10-38RX, are yellow heat shrink terminals suitable for use with conductor sizes ranging from 10 to 12 AWG (5.26 to 3.31 mm²). With an overall length of 1.2 in (30.48 mm) and a width of 0.59 in (14.98 mm), these crimp-style terminals have a maximum operating temperature of 105 ℃. They feature a connection width of 0.375 in (9.525 mm) and are ideal for secure electrical connections. - 7000133381
Specifications
Color
Yellow
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Insulation Material
Heat Shrink
Overall Length (Imperial)
1.2 In
Overall Length (Metric)
30.48 mm
Terminal Type
Ring
Features
Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
