Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

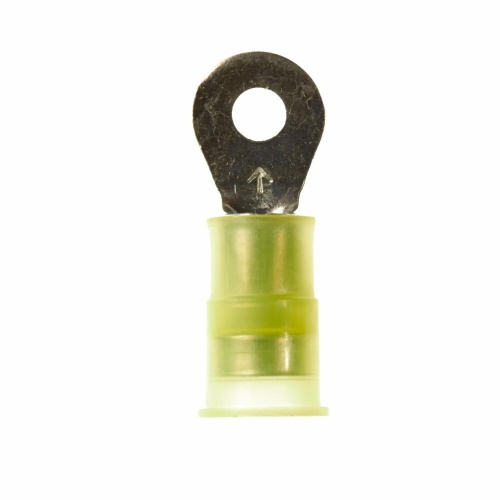

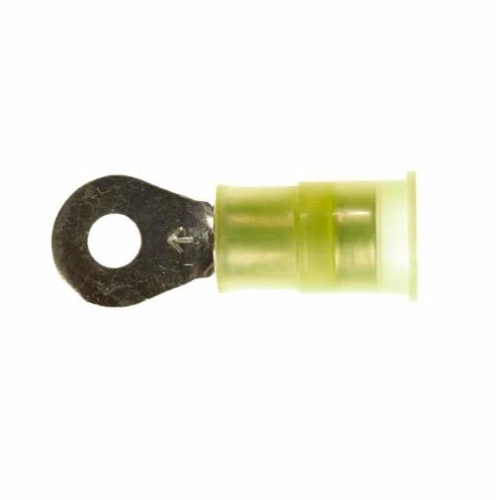

3M 7000132147 - Scotchlok™ MN6-14R/SK Nylon Insulated Brazed Seam Standard Ring,Terminal, 1/4 Inch Stud, 6 AWG, Yellow
Normally In Stock
Code: 474894
Scotchlok™ MN6-14R/SK Nylon Insulated Brazed Seam Standard Ring,Terminal, 1/4 Inch Stud, 6 AWG, Yellow - 7000132147
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$309.73
Sale Price
$258.11
SOLD BY THE CASE (1 Case = 200 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals, 3MCatalog Number MN6-14R/SK, are blue in color and made from insulated nylon materials. With an overall length of 1.5 inches and a maximum operating temperature of 105℃ (221℉), these ring terminals are suitable for a wide range of applications. They have a maximum conductor size of 6 AWG and a stud size of 1/4 inch. The terminals are tin plated for added durability and have a crimp connection type. They are UL and CSA certified with a maximum recommended voltage rating of 600 V. - 7000132147
Specifications
Color
Blue
Component
Ring Terminal
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
221 °F
Maximum Operating Temperature (Celsius)
105 °C
Overall Length (Imperial)
1.5 In
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
6 AWG
Terminal Style
Standard
Minimum Conductor Size (Imperial)
6 AWG
Insulation Material
Nylon
Terminal Type
Ring
Maximum Conductor Size (Metric)
13.3 mm²
Minimum Conductor Size (Metric)
13.3 mm²
Features
Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Flared portion of the nylon sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Downloads
No current downloads for this product. Please call us at 888-532-2706 for more information.
