3M 7100165304 - Scotchlok™ High Temperature Ring Non-Insulated, 100/bottle, MU18-10RHTX
Normally In Stock
Code: 474876
Scotchlok™ High Temperature Ring Non-Insulated, 100/bottle, MU18-10RHTX - 7100165304
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$422.68
Sale Price
$352.23
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

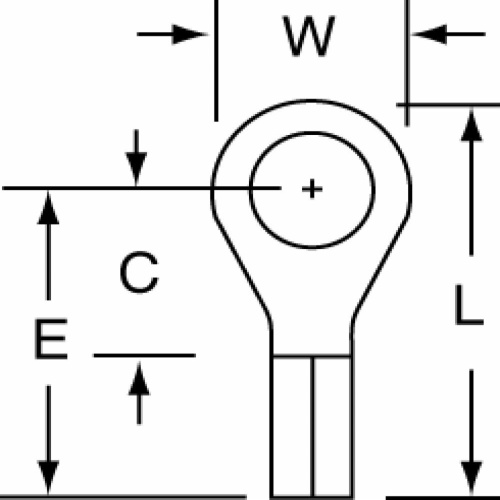

Scotchlok™ Ring Terminals (3MCatalog Number: MU18-10RHTX) are non-insulated terminals with an overall length of 0.7 in. They accommodate a maximum conductor size of 18 AWG (0.823 mm²) and a minimum conductor size of 22 AWG (0.326 mm²). The ring terminal's overall width is 0.33 in, while the connection width is 0.19 in (4.826 mm). - 7100165304
Specifications
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
0.326 mm²
Insulation Material
Non-Insulated
Overall Length (Imperial)
0.7 In
Terminal Type
Ring
Maximum Conductor Size (Metric)
0.823 mm²
Features
Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Beveled mouth offers easy insertion of wires
For use in ovens, motors, light fixtures and other applications
Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
Withstands a maximum temperature of 900 degrees F (482 degrees C)
