3M 7000133345 - Scotchlok™ High Temperature Ring Non-Insulated, 100/bottle, MU14-10RHTX
Normally In Stock
Code: 474873
Scotchlok™ High Temperature Ring Non-Insulated, 100/bottle, MU14-10RHTX - 7000133345
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$422.68
Sale Price
$352.23
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

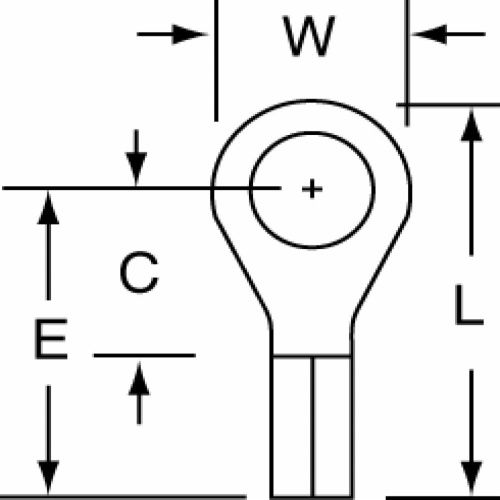

Scotchlok™ Ring Terminals, 3MCatalog Number MU14-10RHTX, are metal-colored non-insulated connectors. They have an overall length of 0.7 in (17.78 mm) and can handle a maximum operating temperature of 482 ℃. These terminals can be used with a conductor size range of 14 AWG (2.08 mm²) to 16 AWG (1.31 mm²). The connection width is 0.19 in (4.826 mm), and the overall width is 0.33 in (8.38 mm). - 7000133345
Specifications
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Insulation Material
Non-Insulated
Color
Metal
Overall Length (Imperial)
0.7 In
Maximum Operating Temperature (Celsius)
482 °C
Terminal Type
Ring
Overall Length (Metric)
17.78 mm
Features
Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Beveled mouth offers easy insertion of wires
For use in ovens, motors, light fixtures and other applications
Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
Withstands a maximum temperature of 900 degrees F (482 degrees C)
