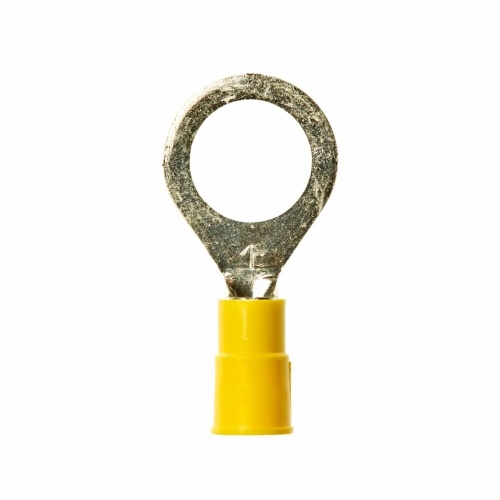

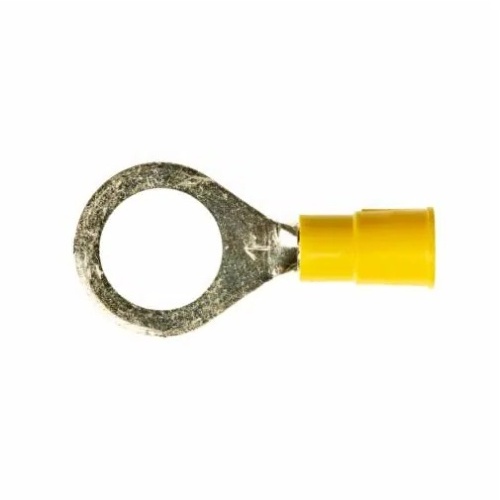

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 474840
3M 7000133412 - Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV14-516R/SX, standard-style ring tongue fits around the stud
Normally In Stock
Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV14-516R/SX, standard-style ring tongue fits around the stud - 7000133412
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$679.63
Sale Price
$566.36
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals, catalog number MV14-516R/SX, are designed for reliable electrical connections. With a maximum operating temperature of 105℃, these blue vinyl-insulated terminals can accommodate 14 AWG to 16 AWG conductors. The overall length is 1.08 in (27.43 mm) and the overall width is 0.47 in (11.93 mm). The connection width is 0.315 in (8 mm). - 7000133412
Specifications
Color
Blue
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Insulation Material
Vinyl
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Terminal Type
Ring
Overall Length (Imperial)
1.08 In
Overall Length (Metric)
27.43 mm
Features
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
