Code: 474835

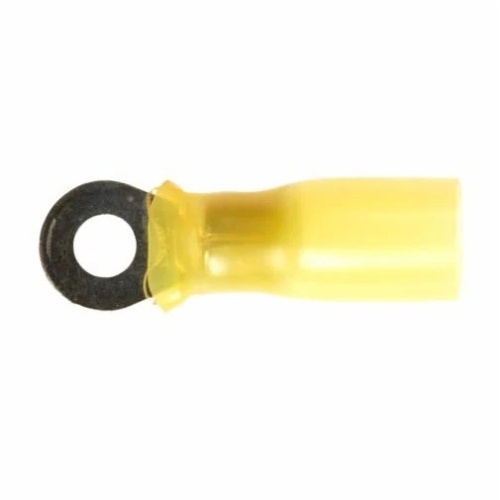

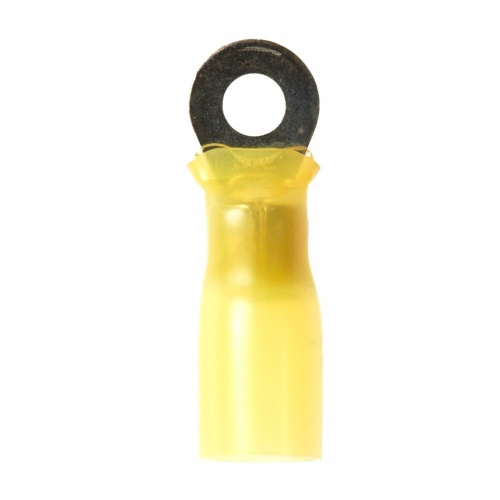

3M 7000132450 - Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH14-14R/SK, Stud,Size 1/4
Normally In Stock
Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH14-14R/SK, Stud,Size 1/4 - 7000132450
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$267.66
Sale Price
$223.05
SOLD BY THE CASE (1 Case = 250 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals (Catalog Number MH14-14R/SK) are blue in color and have an overall length of 1.1 inches and overall width of 0.47 inches. They support a maximum operating temperature of 105 ℃ and can accommodate 14 AWG to 16 AWG conductors. The terminals feature heat shrink insulation and a ring terminal type, with a connection width of 0.25 inches (6.35 mm). - 7000132450
Specifications
Color
Blue
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Insulation Material
Heat Shrink
Overall Length (Imperial)
1.1 In
Terminal Type
Ring
Features
Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
