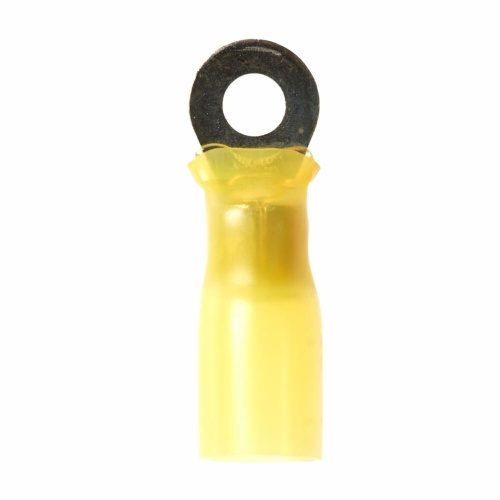

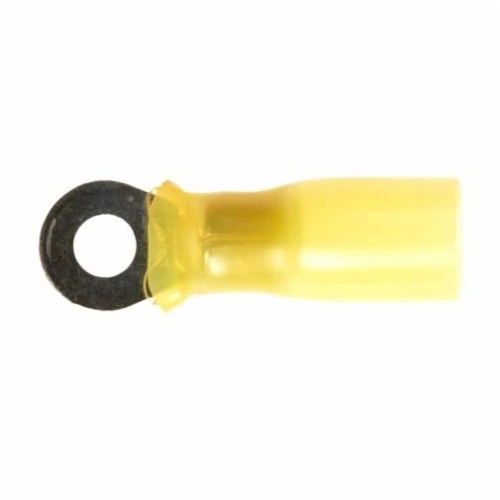

3M 7000132449 - Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH14-10R/LK, Stud,Size 10
Normally In Stock
Code: 474834
Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH14-10R/LK, Stud,Size 10 - 7000132449
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$153.88
Sale Price
$128.23
SOLD BY THE CASE (1 Case = 250 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals (MH14-10R/LK) are heat shrink insulated with a blue color. They have an overall length of 1 inch and an overall width of 0.31 inches. The maximum operating temperature is 105 ℃, making them suitable for various applications. These terminals can accommodate a range of conductor sizes, from 14 AWG (2.08 mm²) to 16 AWG (126.7 mm²). With a connection width of 0.19 inches (4.826 mm), they provide secure and reliable electrical connections. - 7000132449
Specifications
Color
Blue
Component
Ring Terminal
Manufacturer
3M
Maximum Operating Temperature (Celsius)
105 °C
Overall Length (Imperial)
1 In
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
2.08 mm²
Insulation Material
Heat Shrink
Terminal Type
Ring
Minimum Conductor Size (Metric)
126.7 mm²
Features
Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
