Code: 474833

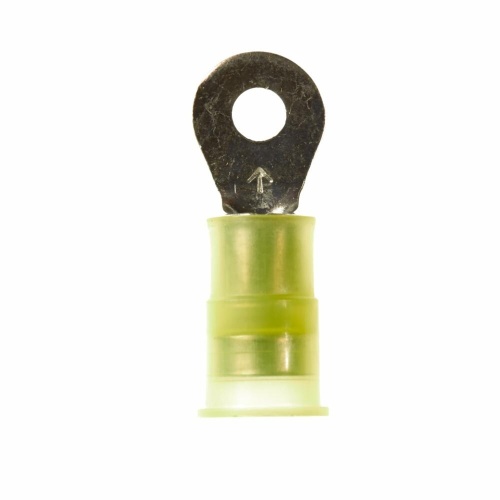

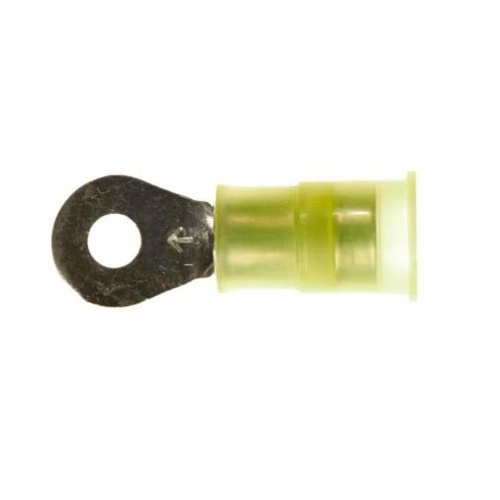

3M 7000132150 - Scotchlok™ Ring Tongue Nylon Insulated Brazed Seam MN6-12R/SK, Stud,Size 1/2
Normally In Stock
Scotchlok™ Ring Tongue Nylon Insulated Brazed Seam MN6-12R/SK, Stud,Size 1/2 - 7000132150
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$478.88
Sale Price
$399.07
SOLD BY THE CASE (1 Case = 200 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals, 3MCatalog Number MN6-12R/SK, are blue in color and made of nylon insulation material. They have an overall length of 1.78 in and an overall width of 0.81 in. The terminals can accommodate a maximum conductor size of 6 AWG or 13.3 mm², and have a minimum conductor size of 6 AWG or 13.3 mm². They can handle temperatures up to 105 ℃ and have a connection width of 0.5 in or 12.7 mm. - 7000132150
Specifications
Color
Blue
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
6 AWG
Overall Length (Imperial)
1.78 In
Minimum Conductor Size (Imperial)
6 AWG
Insulation Material
Nylon
Terminal Type
Ring
Maximum Conductor Size (Metric)
13.3 mm²
Minimum Conductor Size (Metric)
13.3 mm²
Features
Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Flared portion of the nylon sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
