Code: 474829
3M 7000133273 - Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG18-8R/LX, standard-style ring tongue fits around the stud
Normally In Stock
Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG18-8R/LX, standard-style ring tongue fits around the stud - 7000133273
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$156.84
Sale Price
$130.70
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

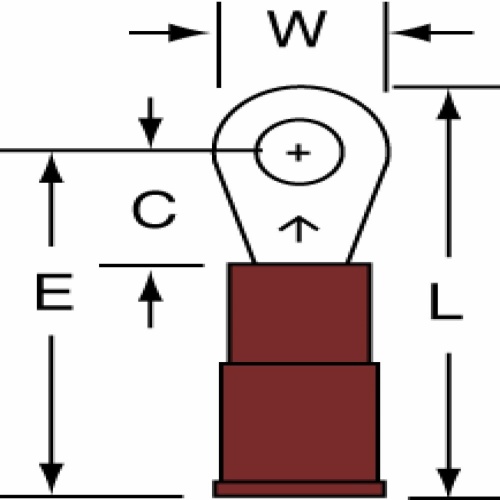

Scotchlok™ Ring Terminals, 3MCatalog Number MNG18-8R/LX, are nylon-insulated terminals suitable for use with 18 AWG to 22 AWG conductors. With a maximum operating temperature of 105 ℃, these red terminals have an overall length of 0.92 inches (23.36 mm) and an overall width of 0.31 inches (7.87 mm). The ring terminal features a connection width of 0.164 inches (4.166 mm) and is designed for efficient electrical connections. - 7000133273
Specifications
Color
Red
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Insulation Material
Nylon
Minimum Conductor Size (Metric)
0.326 mm²
Overall Length (Imperial)
0.92 In
Terminal Type
Ring
Maximum Conductor Size (Metric)
0.823 mm²
Overall Length (Metric)
23.36 mm
Features
Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, seamless brass sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
