Code: 474828
3M 7000133406 - Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG18-4R/SX, standard-style ring tongue fits around the stud
Normally In Stock
Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG18-4R/SX, standard-style ring tongue fits around the stud - 7000133406
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$784.19
Sale Price
$653.49
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

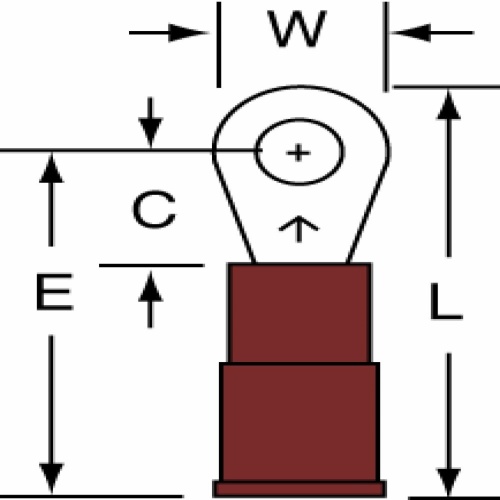

Scotchlok™ Ring Terminals, MNG18-4R/SX, are durable and efficient electrical connectors. With an overall length of 0.79 in (20.06 mm) and a maximum operating temperature of 105 ℃, these red terminals are ideal for 18-22 AWG conductors. Made with nylon insulation material, they provide reliable connections and have a compact overall width of 0.25 in (6.35 mm). The connection width is 0.112 in (2.845 mm). - 7000133406
Specifications
Color
Red
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Insulation Material
Nylon
Minimum Conductor Size (Metric)
0.326 mm²
Terminal Type
Ring
Maximum Conductor Size (Metric)
0.823 mm²
Overall Length (Imperial)
0.79 In
Overall Length (Metric)
20.06 mm
Features
Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, seamless brass sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
