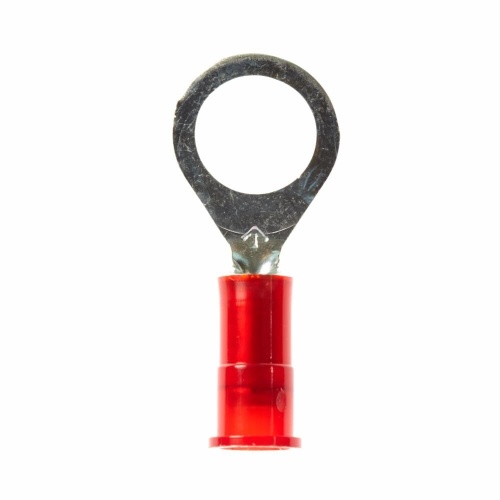

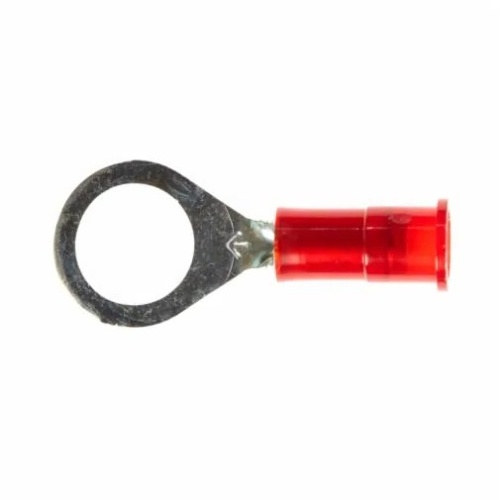

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
3M 7000133420 - Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG14-610RX
Normally In Stock
Code: 474825
Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG14-610RX - 7000133420
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$591.84
Sale Price
$493.20
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals (MNG14-610RX) are blue, plastic connectors designed for electrical applications. With an overall length of 1.02 in (25.9 mm) and overall width of 0.34 in (8.63 mm), they can accommodate 14-16 AWG conductors. These terminals have a butted barrel style and a multi-stud terminal style. They can withstand temperatures ranging from -40 °C to 105 °C (-40 °F to 221 °F) and have a maximum recommended voltage rating of 600 V. - 7000133420
Specifications
Color
Blue
Component
Ring Terminal
Material
Plastic
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
221 °F
Maximum Operating Temperature (Celsius)
105 °C
Sub Brand
Scotchlok™
Overall Length (Imperial)
1.02 In
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Insulation Material
Nylon
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Overall Length (Metric)
25.9 mm
Terminal Type
Ring
Terminal Style
Multi-Stud
Features
Funnel-designed, seamless brass sleeve offers easy insertion of wires
Multi-stud style ring tongue fits around multiple stud sizes
Stud size #6 to #10
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
