3M 7000133418 - Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG14-38RX, standard-style ring tongue fits around the stud
Normally In Stock
Code: 474824
Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG14-38RX, standard-style ring tongue fits around the stud - 7000133418
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$937.08
Sale Price
$780.90
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

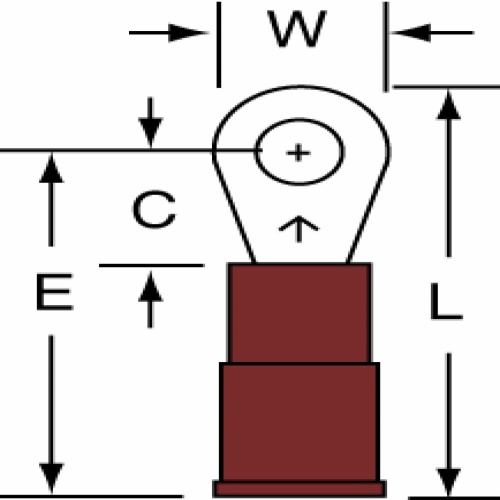

Scotchlok™ Ring Terminals (MNG14-38RX) are nylon-insulated connectors designed for secure wire connections. They have an overall length of 1.14 in (28.95 mm) and an overall width of 0.56 in (14.22 mm). The terminals can accommodate conductor sizes ranging from 14 AWG (2.08 mm²) to 16 AWG (1.31 mm²). With a maximum operating temperature of 105 ℃, these blue terminals are reliable for various applications. - 7000133418
Specifications
Color
Blue
Component
Ring Terminal
Manufacturer
3M
Maximum Operating Temperature (Celsius)
105 °C
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Insulation Material
Nylon
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Terminal Type
Ring
Overall Length (Imperial)
1.14 In
Overall Length (Metric)
28.95 mm
Features
Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, seamless brass sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
