3M 7000133346 - Scotchlok™ High Temperature Ring Non-Insulated, 50/bottle, MU10-10RHTX
Normally In Stock
Code: 474823
Scotchlok™ High Temperature Ring Non-Insulated, 50/bottle, MU10-10RHTX - 7000133346
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$591.84
Sale Price
$493.20
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

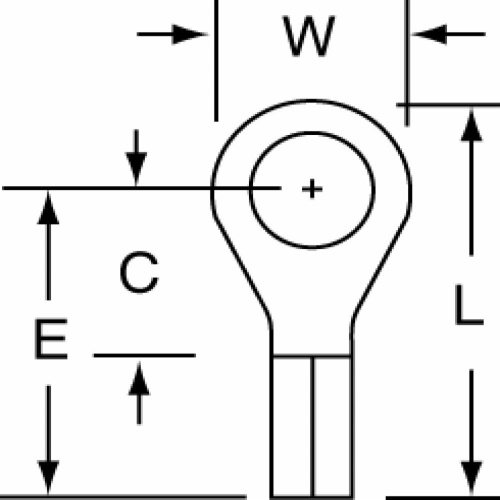

Scotchlok™ Ring Terminal (MU10-10RHTX) is a non-insulated metal terminal suitable for use with 10 AWG to 12 AWG conductors. With an overall length of 0.73 in (18.54 mm) and an overall width of 0.38 in (9.65 mm), it offers secure connections. It can withstand temperatures up to 482 ℃ and has a maximum conductor size of 5.26 mm². - 7000133346
Specifications
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Overall Length (Imperial)
0.73 In
Insulation Material
Non-Insulated
Color
Metal
Maximum Operating Temperature (Celsius)
482 °C
Terminal Type
Ring
Overall Length (Metric)
18.54 mm
Features
Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Beveled mouth offers easy insertion of wires
For use in ovens, motors, light fixtures and other applications
Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
Withstands a maximum temperature of 900 degrees F (482 degrees C)
