3M 7100123072 - Scotchcast™ Inline Resin Power Cable Splice kit 82-AN, 10-2 AWG, 1
Normally In Stock
Code: 474807
Scotchcast™ Inline Resin Power Cable Splice kit 82-AN, 10-2 AWG, 1 - 7100123072
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$871.19
Sale Price
$725.99
SOLD BY THE CASE (1 Case = 10 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

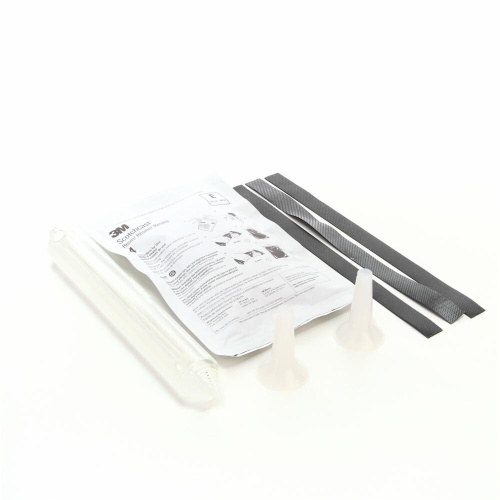

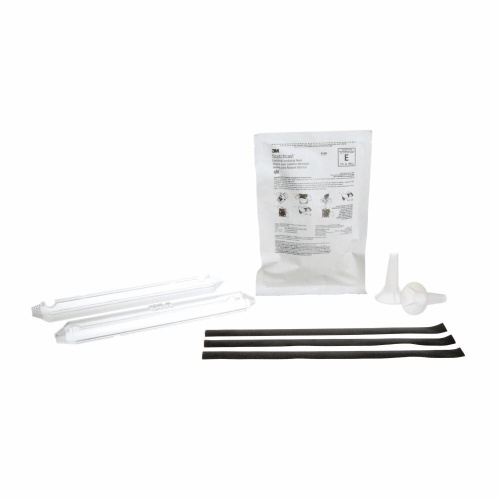

Scotchcast™ 82-AN Resin Joints & Splices are black epoxy connectors for medium voltage applications. They provide sealing, electrical insulation, and mechanical protection for single conductor portable cables. With a voltage rating of 5 kV and a splice type of inline, these joints and splices accommodate conductor sizes ranging from 10 AWG to 2 AWG. They have a maximum cable outside diameter of 0.60 inches (15.2 mm) and a dielectric strength of 500 mV. The product series is 82-A Series and the insulation outside diameter range is 0.406 - 0.750 inches (10 - 19 mm). Suitable for multiple and single conductor cables. - 7100123072
Specifications
Color
Black
Manufacturer
3M
Splice Type
Inline
Sub Brand
Scotchcast™
Maximum Conductor Size (Imperial)
2 AWG
Minimum Conductor Size (Metric)
35 mm²
Minimum Conductor Size (Imperial)
10 AWG
Component
Resin Joints & Splice
Material
Epoxy
Maximum Conductor Size (Metric)
35 mm²
Features
Excellent multi-purpose moisture sealing resin
Tough and oil resistant
Insulates and seals unshielded, single conductor cables and multiple conductor cables

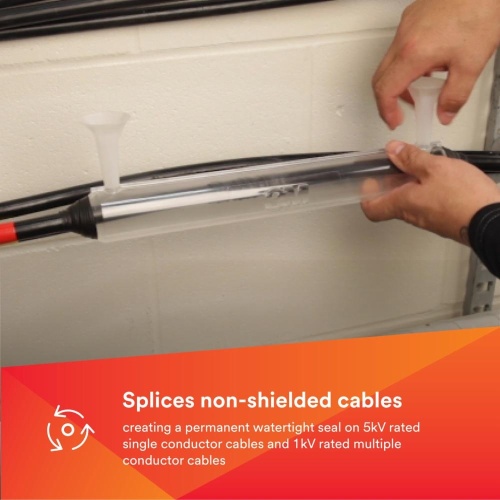

Splices non-shielded submersible cables

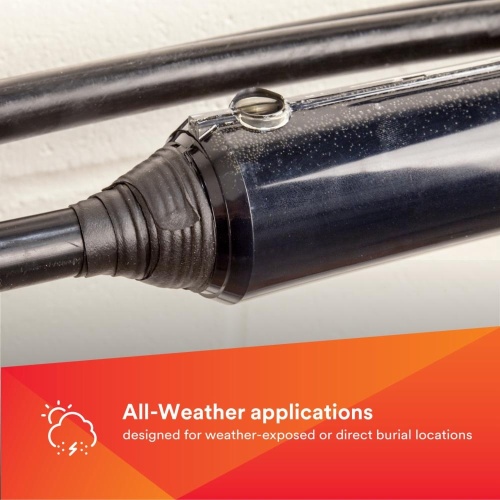

Designed for weather-exposed or direct burial locations
Rated for 5 kV and 1 kV cables
Bonds to itself and to most modern cable jackets
UL Listed and RoHS 2011/65/EU Compliant
