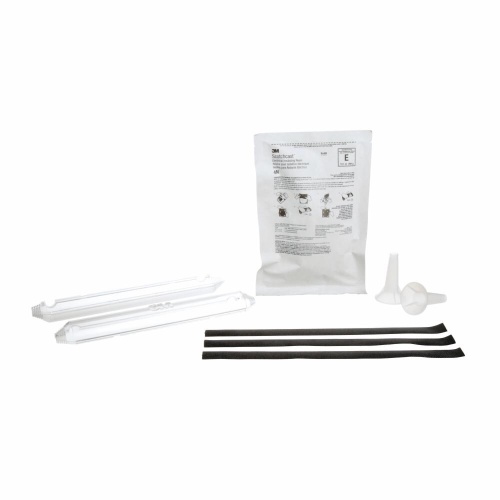

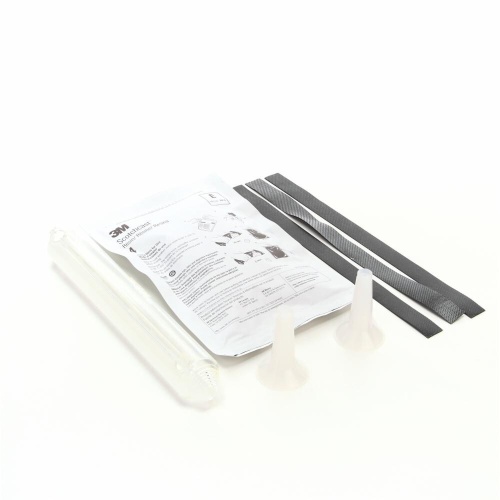

3M 7100123073 - Scotchcast™ Inline Resin Power Cable Splice kit 82-A1N, Up to 2 AWG
Normally In Stock
Code: 474805
Scotchcast™ Inline Resin Power Cable Splice kit 82-A1N, Up to 2 AWG - 7100123073
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$749.08
Sale Price
$624.23
SOLD BY THE CASE (1 Case = 10 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchcast™ 82-A1N Resin Joints & Splices are epoxy-based products designed for sealing, electrical insulation, and mechanical protection. They are suitable for medium voltage applications and can handle a maximum voltage of 5 kV. These splices have a black color and can accommodate conductor sizes ranging from 8 AWG to 2 AWG (10 mm² to 35 mm²). The splice type is inline, and they can be used with single conductor portable cables. The insulation outside diameter ranges from 0.406 to 0.625 inches (10-16 mm), and the maximum cable outside diameter is 0.60 inches (15.2 mm). The product series is 82-A Series, and the 3Mcatalog number is 82-A1N. The dielectric strength is 500 mV. - 7100123073
Specifications
Color
Black
Manufacturer
3M
Splice Type
Inline
Minimum Conductor Size (Imperial)
8 AWG
Minimum Conductor Size (Metric)
10 mm²
Sub Brand
Scotchcast™
Maximum Conductor Size (Imperial)
2 AWG
Component
Resin Joints & Splice
Material
Epoxy
Maximum Conductor Size (Metric)
35 mm²
Features
Excellent multi-purpose moisture sealing resin
Tough and oil resistant
Insulates and seals unshielded, single conductor cables and multiple conductor cables

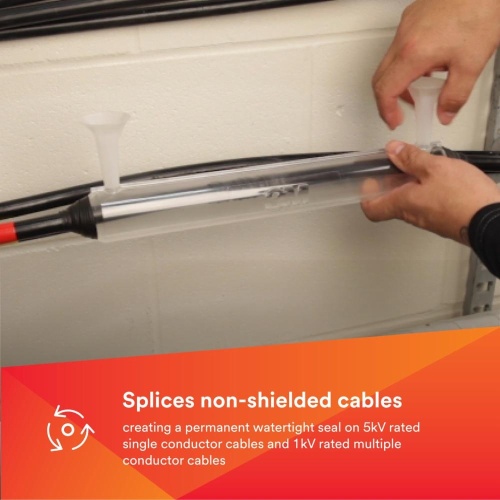

Splices non-shielded submersible cables

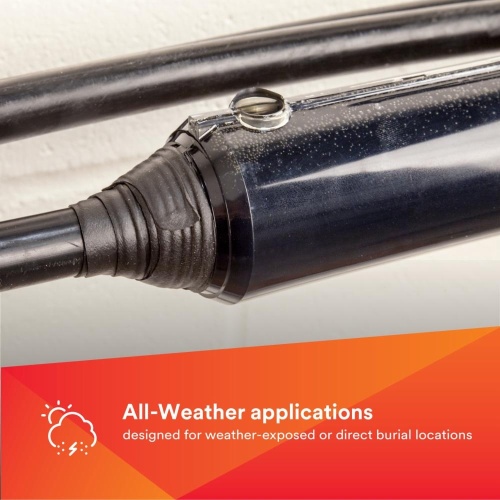

Designed for weather-exposed or direct burial locations
Rated for 5 kV and 1 kV cables
Bonds to itself and to most modern cable jackets
UL Listed and RoHS 2011/65/EU Compliant
