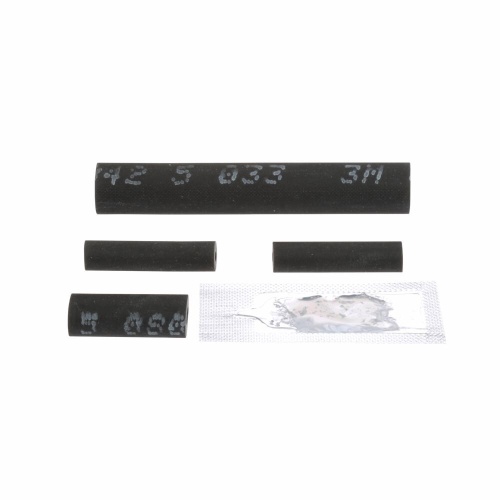

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
3M 7000027613 - 3M Motor Lead Pigtail Splice 5319, 5-8 kV, 4/0 AWG-500 kcmil (feeder), 4/0 AWG-500 kcmil (motor lead)
Normally In Stock
Code: 474280
3M Motor Lead Pigtail Splice 5319, 5-8 kV, 4/0 AWG-500 kcmil (feeder), 4/0 AWG-500 kcmil (motor lead) - 7000027613
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$578.54
Sale Price
$482.12
SOLD BY THE CASE (1 Case = 1 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3MMotor Lead Splice (Catalog Number 5319) is a pigtail-only splice designed for use with 5 kV to 8 kV voltage systems. It is suitable for non-shielded pigtail connections and can accommodate feeder cables with insulation outside diameter between 19.1-28.4 mm (0.75-1.12 in). The maximum bolt length is 1-1/2 in (38.1 mm). It is compatible with range feeder cables ranging from 250-500 AWG/kcmil and can handle motor lead sizes up to 500 kcmil. The lug cover length is 13 in (33.02 mm) and the lug length is 13.0 in (33.02 cm). - 7000027613
Specifications
Manufacturer
3M
Component
Motor Lead Splice
Splice Type
Pigtail Only
Features
Designed for use with copper compression, 1 or 2 hole lugs
Has a durable EPDM rubber construction
