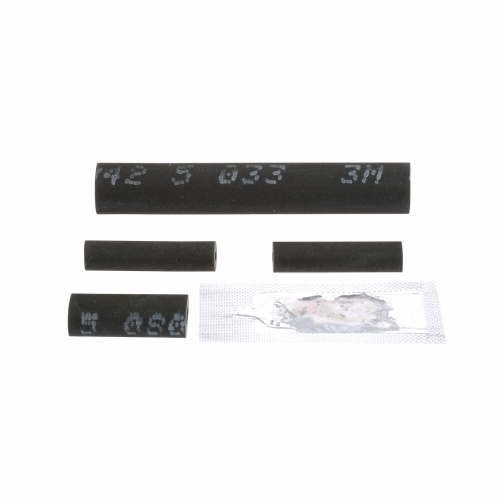

3M Motor Lead Splice (Catalog Number 5318) is designed for 5 kV - 8 kV voltage applications. It is a pigtail splice with a non-shielded connection type. The maximum operating voltage is 8 kV, and it is suitable for use with non-shielded cables with insulation outside diameter ranging from 13.5-22.4 mm (0.53-0.88 in). The splice can accommodate range feeder cables from 1/0-250 AWG & kcmil and has a maximum motor lead size of 250 kcmil. The maximum bolt length is 1-1/4 in (31.8 mm). The lug cover length is 11 in (27.94 mm), and the lug length is also 11.0 in (27.94 cm). - 7000027612
