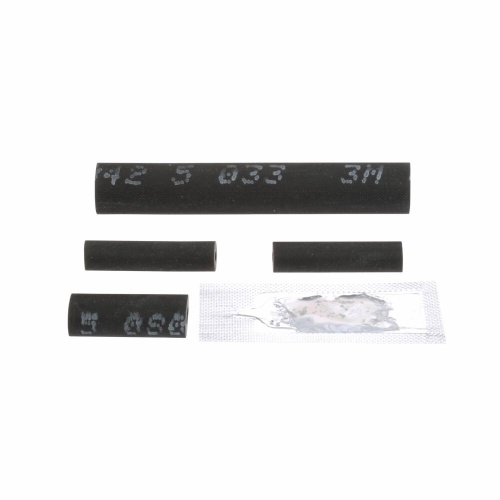

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 474278
3M 7000027611 - 3M Motor Lead Pigtail Splice 5317, 5-8 kV, 2-1/0 AWG (feeder), 4-1/0 AWG (motor lead)
Normally In Stock
3M Motor Lead Pigtail Splice 5317, 5-8 kV, 2-1/0 AWG (feeder), 4-1/0 AWG (motor lead) - 7000027611
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$267.74
Sale Price
$223.12
SOLD BY THE CASE (1 Case = 1 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Motor Lead Splice is designed for voltages ranging from 5 kV to 8 kV. It features a pigtail-only splice type with a non-shielded pigtail connection. With an insulation outside diameter range of 10.9 - 16.5 mm (0.43-0.65 in), it can accommodate feeder cables in the 2-1/0 AWG & kcmil range. The maximum motor lead size is 1/0 AWG and the maximum bolt length is 3/4 in (19.1 mm). The splice includes a lug cover and lug length of 9.5 in (24.13 cm). - 7000027611
Specifications
Manufacturer
3M
Component
Motor Lead Splice
Splice Type
Pigtail Only
Features
Designed for use with copper compression, 1 or 2 hole lugs
Has a durable EPDM rubber construction
