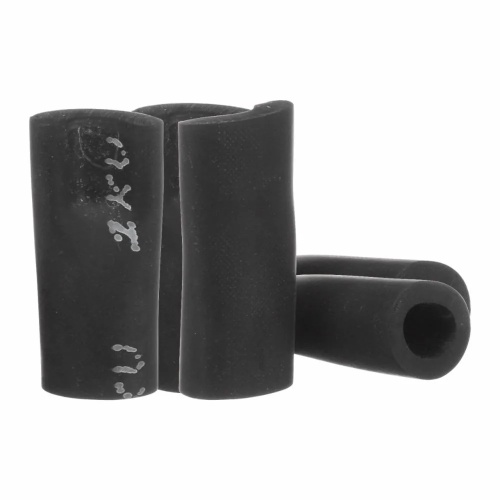

3M 7000005804 - 3M Motor Lead Pigtail Splice 5300, 1 kV, 1-Hole Lug Connection, Feeder:,14-10 AWG , Motor Lead: 16-1/0-AWG
Normally In Stock
Code: 474272
3M Motor Lead Pigtail Splice 5300, 1 kV, 1-Hole Lug Connection, Feeder:,14-10 AWG , Motor Lead: 16-1/0-AWG - 7000005804
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$67.93
Sale Price
$56.61
SOLD BY THE CASE (1 Case = 1 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3MMotor Lead Splices (Catalog Number 5300) are designed for pigtail connections in non-shielded applications, with a maximum operating voltage of 1 kV. They can be used with cables ranging from 14-10 AWG and offer insulation outside diameter ranges of 3.0-5.3 mm (0.12-0.21 in). The splices have a maximum bolt length of 3/8 in (9.5 mm) and can accommodate up to 12 AWG motor leads. The lug cover measures 2.1 in (53.3 mm) in length and has an inner diameter of 0.45 in (11.4 mm). - 7000005804
Specifications
Manufacturer
3M
Component
Motor Lead Splice
Splice Type
Pigtail Only
Features
Splices motor lead cables to incoming feeder cables
Designed to use with copper compression, 1-hole lugs
Slip-on lug cover is made of durable EPDM rubber
For pigtail (stub) connections at 1000V or less
Includes 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease, plus an instruction sheet
CSA Certified and RoHS 2011/65/EU Compliant
