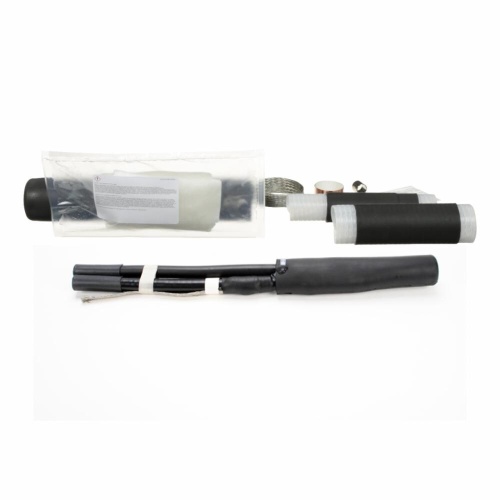

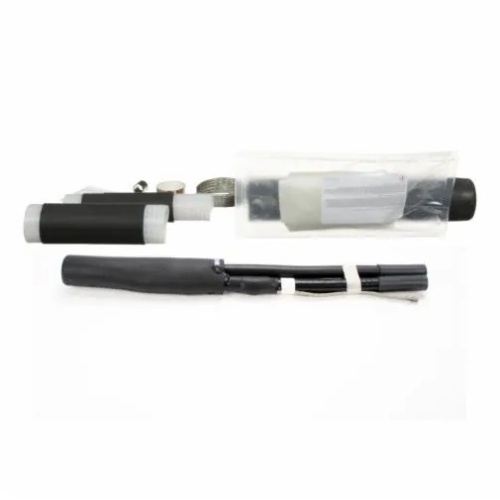

3M 7000133146 - 3M Motor Lead Pigtail or V-Stub Splice 5384, 5-8 kV, Feeder: 250-500 kcmil, Motor Lead: 4/0 AWG-500 kcmil
Normally In Stock
Code: 474271
3M Motor Lead Pigtail or V-Stub Splice 5384, 5-8 kV, Feeder: 250-500 kcmil, Motor Lead: 4/0 AWG-500 kcmil - 7000133146
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$1369.04
Sale Price
$1140.87
SOLD BY THE CASE (1 Case = 1 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3MMotor Lead Splices (Catalog Number 5384) are cold shrink type splices suitable for cable connection in medium voltage applications. They can be used with cable sizes ranging from 1/0 AWG to 4/0 AWG and 250 kcmil to 350 kcmil. The splices accommodate aluminum and copper conductors, with an insulation outside diameter of 19.1-28.4 mm (0.75-1.12 in). They do not include connectors and have a maximum lug length of 5-1/2 in (139.7 mm). The splices have a typical length of 33 in (838 mm). - 7000133146
Specifications
Manufacturer
3M
Maximum Conductor Size (Imperial)
400 Kcmil
Component
Motor Lead Splice
Splice Type
Pigtail Or V-Stub
Maximum Conductor Size (Metric)
185 mm²
Minimum Conductor Size (Imperial)
118 Kcmil
Minimum Conductor Size (Metric)
60 mm²
Features
Designed for use with 3M™ Scotchlok™ Copper One Hole Lug Series 30000 or other UL Listed copper lugs
For use with shielded and non-shielded cables
Rated for 5/8 kV applications
The lug or splice cover is made of EPDM rubber to help resist punctures and abrasion damage
Includes 6 tubes of silicone grease, 3 cold shrink jacket tubes, 3 cable ties, 3 ground straps and 1 instruction sheet
Withstands an operating temperature of 90° C and an emergency overload of 130° C (194° F to 266° F)
