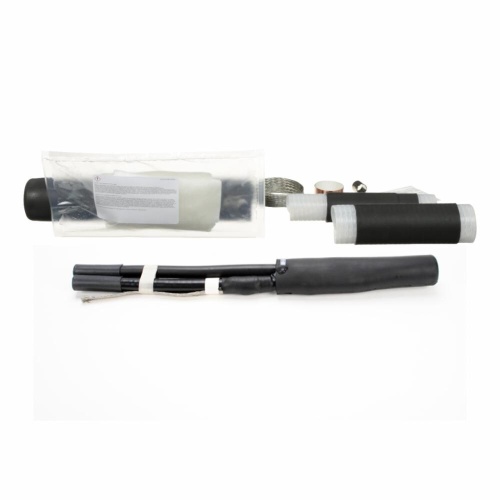

3M 7000133145 - 3M Motor Lead Pigtail or V-Stub Splice 5383, 5-8 kV, Feeder: 1/0 AWG-250 kcmil, Motor Lead: AWG-250 kcmil
Normally In Stock
Code: 474270
3M Motor Lead Pigtail or V-Stub Splice 5383, 5-8 kV, Feeder: 1/0 AWG-250 kcmil, Motor Lead: AWG-250 kcmil - 7000133145
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$1239.66
Sale Price
$1033.05
SOLD BY THE CASE (1 Case = 1 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3MMotor Lead Splices (Catalog Number: 5383) are medium voltage cable connection products designed for 5 kV to 8 kV applications. They support conductor sizes ranging from 500 kcmil to 1000 kcmil, and come in pigtail or V-stub splice types. These splices are suitable for use with various cable types including Concentric Neutral (CN) and Jacketed Concentric Neutral (JCN), with options for both shielded and non-shielded connections. The splices accommodate a maximum operating voltage of 8 kV and can be used with aluminum or copper conductors. Additionally, the splices have an insulation outside diameter range of 0.53-0.88 inches or 13.5-22.4 mm, and a maximum bolt length of 1-1/4 inches or 31.8 mm. The product does not come with a connector included. The 3MMotor Lead Splices are reliable and durable products for efficient cable connections in various applications. - 7000133145
Specifications
Manufacturer
3M
Maximum Conductor Size (Imperial)
1000 Kcmil
Maximum Conductor Size (Metric)
500 mm²
Minimum Conductor Size (Imperial)
500 Kcmil
Minimum Conductor Size (Metric)
240 mm²
Component
Motor Lead Splice
Splice Type
Pigtail Or V-Stub
Features
Designed for use with 3M™ Scotchlok™ Copper One Hole Lug Series 30000 or other UL Listed copper lugs
For use with shielded and non-shielded cables
Rated for 5/8 kV applications
The lug or splice cover is made of EPDM rubber to help resist punctures and abrasion damage

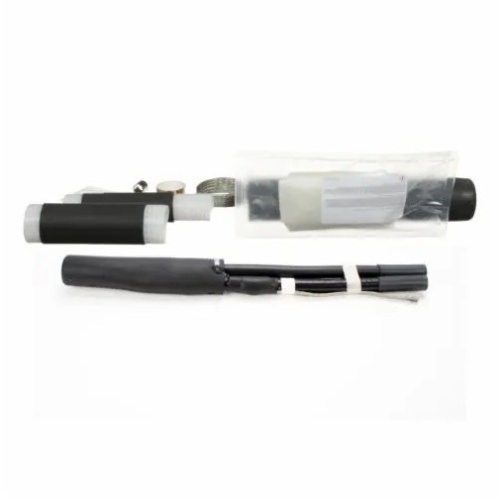

Includes 6 tubes of silicone grease, 3 cold shrink jacket tubes, 3 cable ties, 3 ground straps and 1 instruction sheet
Withstands an operating temperature of 90° C and an emergency overload of 130° C (194° F to 266° F)
