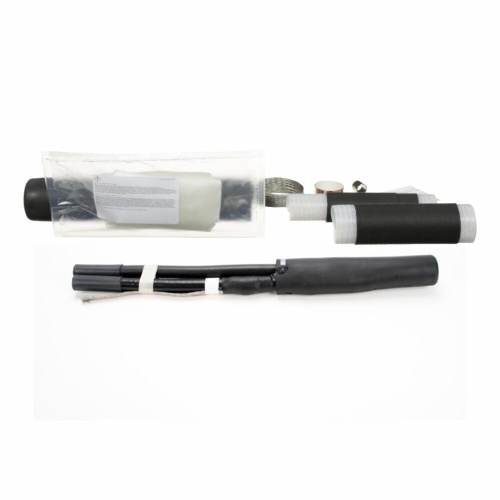

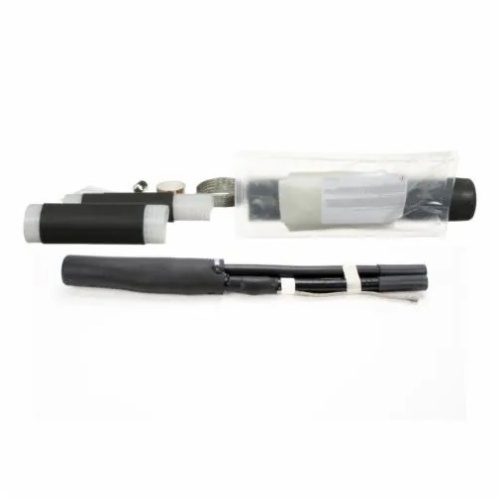

3M 7000133144 - 3M Motor Lead Pigtail or V-Stub Splice 5382, 5-8 kV, Feeder: 2-1/0 AWG, Motor Lead: 4-1/0 AWG
Normally In Stock
Code: 474269
3M Motor Lead Pigtail or V-Stub Splice 5382, 5-8 kV, Feeder: 2-1/0 AWG, Motor Lead: 4-1/0 AWG - 7000133144
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$1017.38
Sale Price
$847.82
SOLD BY THE CASE (1 Case = 1 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Motor Lead Splice (Catalog Number 5382) is designed for cable connections in medium voltage applications. It can accommodate conductor sizes ranging from 250 kcmil to 500 kcmil, with a voltage range of 5 kV to 8 kV. The splice type can be either pigtail or V-stub. It is suitable for use with various cable types, including concentric neutral (CN) and jacketed concentric neutral (JCN). The maximum operating voltage is 8 kV, and it can be used with aluminum or copper conductors. The insulation outside diameter range is 10.9 - 16.5 mm (0.43-0.65 in). It does not include a connector and the typical splice length is 838 mm (33 in). - 7000133144
Specifications
Manufacturer
3M
Minimum Conductor Size (Imperial)
250 Kcmil
Minimum Conductor Size (Metric)
120 mm²
Maximum Conductor Size (Imperial)
500 Kcmil
Maximum Conductor Size (Metric)
240 mm²
Component
Motor Lead Splice
Splice Type
Pigtail Or V-Stub
Features
Designed for use with 3M™ Scotchlok™ Copper One Hole Lug Series 30000 or other UL Listed copper lugs
For use with shielded and non-shielded cables
Rated for 5/8 kV applications
The lug or splice cover is made of EPDM rubber to help resist punctures and abrasion damage
Includes 6 tubes of silicone grease, 3 cold shrink jacket tubes, 3 cable ties, 3 ground straps and 1 instruction sheet
Withstands an operating temperature of 90° C and an emergency overload of 130° C (194° F to 266° F)
