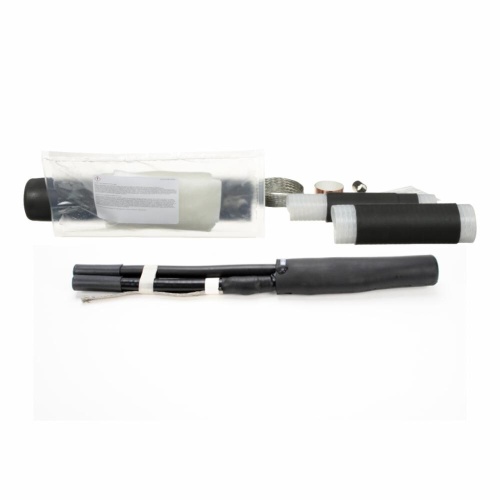

3M 7000133143 - 3M Motor Lead Pigtail or V-Stub Splice 5381, 5-8 kV, Feeder: 8-4 AWG, Motor Lead: 10-4 AWG
Normally In Stock
Code: 474268
3M Motor Lead Pigtail or V-Stub Splice 5381, 5-8 kV, Feeder: 8-4 AWG, Motor Lead: 10-4 AWG - 7000133143
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$999.54
Sale Price
$832.95
SOLD BY THE CASE (1 Case = 1 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Motor Lead Splices, 3M,Catalog Number: 5381,Conductor Size (Imperial): 1/0 AWG - 250 kcmil,Conductor Size (Metric): 50 mm² - 120 mm²,Voltage: 5 kV - 8 kV,Splice Type: Pigtail or V-stub,Connection Type: Pigtail (Non-shielded), Pigtail (Shielded),Application: Cable Connection,Voltage Application: Medium Voltage,Maximum Operating Voltage: 8 kV,Cable Type: Concentric Neutral (CN), Jacketed Concentric Neutral (JCN),Cable Shielding: Concentric Neutral (CN), Jacketed Concentric Neutral (JCN), Non-shielded, Ribbon Shield, UniShield®, Wire Shield,Number of Conductors: 1-3,Conductor Material: Aluminum, Copper,Insulation Outside Diameter: 0.30-0.51 Inch (Metric: 7.6-13.0 mm),Maximum Bolt Length: 5/8 in (Metric: 15.9 mm),Range Feeder Cable: 8-4 AWG & kcmil,Maximum Motor Lead Size: 4 AWG,Maximum Feeder Lead Size: 4 AWG,Connector Included: No, None,Typical Splice Length: 30 in (Metric: 762 mm),Maximum Lug Length: 2-1/2 in (Metric: 63.5 mm),Inner Diameter of Boot to Size of Cables: 0.90 in (Metric: 22.9 mm) - 7000133143
Specifications
Manufacturer
3M
Maximum Conductor Size (Imperial)
250 Kcmil
Minimum Conductor Size (Imperial)
1/0 AWG
Minimum Conductor Size (Metric)
50 mm²
Component
Motor Lead Splice
Maximum Conductor Size (Metric)
120 mm²
Splice Type
Pigtail Or V-Stub
Features
Designed for use with 3M™ Scotchlok™ Copper One Hole Lug Series 30000 or other UL Listed copper lugs
For use with shielded and non-shielded cables
Rated for 5/8 kV applications
The lug or splice cover is made of EPDM rubber to help resist punctures and abrasion damage
Includes 6 tubes of silicone grease, 3 cold shrink jacket tubes, 3 cable ties, 3 ground straps and 1 instruction sheet
Withstands an operating temperature of 90° C and an emergency overload of 130° C (194° F to 266° F)
