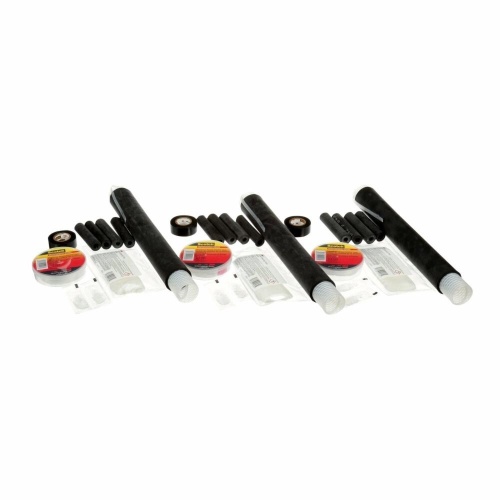

3M 7100164408 - 3M Motor Lead Inline Splice 5334, 5-8 kV, 250-500 kcmil (feeder), 4/0 AWG-500 kcmil (motor lead)
Normally In Stock
Code: 474267
3M Motor Lead Inline Splice 5334, 5-8 kV, 250-500 kcmil (feeder), 4/0 AWG-500 kcmil (motor lead) - 7100164408
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$847.73
Sale Price
$706.44
SOLD BY THE CASE (1 Case = 1 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Motor Lead Splices (Catalog Number 5334) are designed for voltages ranging from 5 kV to 8 kV. These inline splices can be used with both shielded and non-shielded connections. They have a maximum operating voltage of 8 kV and are suitable for feeder cables ranging from 250 AWG to 500 kcmil. The splices can accommodate a maximum motor lead size of 500 kcmil and have a maximum bolt length of 1-1/2 inches. The insulation outside diameter range is 4/0-350 kcmil: 0.75-0.98 in and 350-500 kcmil: 0.94-1.12 in. The splice cover inner diameter is 4/0 AWG-350 kcmil: 0.60 in and 350-500 kcmil: 0.84 in, with a splice cover length of 17-18 in. - 7100164408
Specifications
Manufacturer
3M
Splice Type
Inline
Component
Motor Lead Splice
Features
For use with shielded or non-shielded cables
Designed for splicing motor lead cables to the incoming feeder cables
Suitable for use with 3M™ Scotchlok™ Copper One Hole Lug Series 30000 compression lugs or other UL Listed copper lugs
Accommodates wire size of 10 to 4 AWG
Rated for 5/8 kV applications
Includes 3 rolls Scotch® Electrical Stress Control Tape 2220, 12 adapters, 3 instruction sheets and more
Withstands temperatures of 90° C (194° F)
