3M 7000132543 - 3M Motor Lead Inline Splice 5333, 5-8 kV, 1/0 AWG-250 kcmil (feeder), 2 AWG-250 kcmil (motor lead)
Normally In Stock
Code: 474266

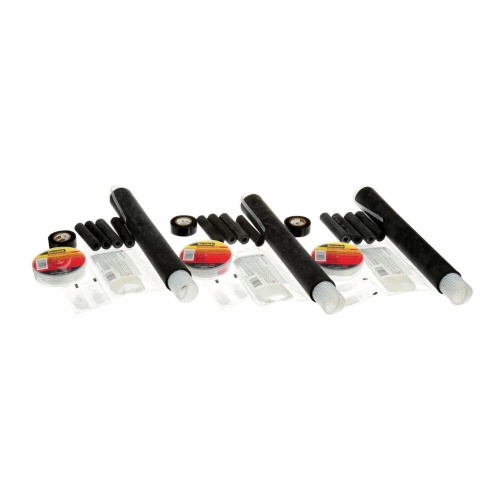

3M Motor Lead Inline Splice 5333, 5-8 kV, 1/0 AWG-250 kcmil (feeder), 2 AWG-250 kcmil (motor lead) - 7000132543
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$775.74
Sale Price
$646.45
SOLD BY THE CASE (1 Case = 1 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3MMotor Lead Splices, catalog number 5333, are designed for use with voltages ranging from 5 kV to 8 kV. These inline splices are available in pigtail (non-shielded) and pigtail (shielded) connection types. They can accommodate insulation outside diameters ranging from 2-2/0 AWG to 3/0 AWG-250 kcmil. The maximum operating voltage is 8 kV, and the maximum bolt length is 1-1/2 inches. These splices are suitable for range feeder cables ranging from 1/0 to 250 AWG and kcmil. The maximum motor lead size and maximum feeder lead size are both 250 kcmil. The splice cover inner diameter ranges from 2-2/0 AWG: 12.7 mm to 3/0 AWG-250 kcmil: 15.2 mm, and the splice cover length ranges from 381.0 mm to 406.4 mm. The insulation outside diameter by conductor size is 2-2/0 AWG: 0.53-0.71 inch and 3/0 AWG-250 kcmil: 0.70-0.88 inch or 2-2/0 AWG: 13.5-18.0 mm and 3/0 AWG-250 kcmil: 17.8-22.4 mm (Metric). - 7000132543
Specifications
Manufacturer
3M
Splice Type
Inline
Component
Motor Lead Splice
Features
For use with shielded or non-shielded cables
Designed for splicing motor lead cables to the incoming feeder cables
Suitable for use with 3M™ Scotchlok™ Copper One Hole Lug Series 30000 compression lugs or other UL Listed copper lugs
Accommodates wire size of 10 to 4 AWG
Rated for 5/8 kV applications
Includes 3 rolls Scotch® Electrical Stress Control Tape 2220, 12 adapters, 3 instruction sheets and more
Withstands temperatures of 90° C (194° F)
