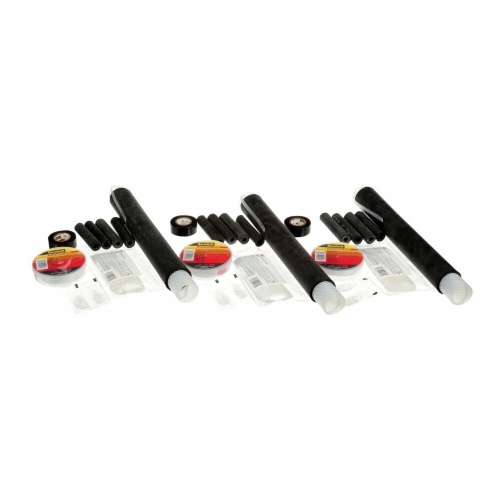

3M 7000006045 - 3M Motor Lead Inline Splice 5331, 5-8 kV, 8-4 AWG (feeder), 10-4 AWG,(motor lead)
Normally In Stock
Code: 474264
3M Motor Lead Inline Splice 5331, 5-8 kV, 8-4 AWG (feeder), 10-4 AWG,(motor lead) - 7000006045
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$496.79
Sale Price
$413.99
SOLD BY THE CASE (1 Case = 1 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3MMotor Lead Splices (Catalog Number: 5331) are designed for inline connections in 5 kV - 8 kV systems. They can be used with shielded or non-shielded cables and have a maximum operating voltage of 8 kV. The splices accommodate a range of feeder cable sizes (8-4 AWG) and have a maximum motor lead size of 4 AWG. The insulation outside diameter ranges from 10-6 AWG: 0.30-0.46 in / 6-4 AWG: 0.37-0.51 in or 10-6 AWG: 7.6-11.7 mm / 6-4 AWG: 9.4-13.0 mm (metric). The maximum bolt length is 3/4 in or 19.1 mm (metric). The splice cover has an inner diameter of 10-6 AWG: 0.24 in / 6-4 AWG: 0.30 in or 10-6 AWG: 6.1 mm / 6-4 AWG: 7.6 mm (metric), and a length of 10-11 in or 254.0-279.4 mm (metric). - 7000006045
Specifications
Manufacturer
3M
Splice Type
Inline
Component
Motor Lead Splice
Features
For use with shielded or non-shielded cables
Designed for splicing motor lead cables to the incoming feeder cables
Suitable for use with 3M™ Scotchlok™ Copper One Hole Lug Series 30000 compression lugs or other UL Listed copper lugs
Accommodates wire size of 10 to 4 AWG
Rated for 5/8 kV applications
Includes 3 rolls Scotch® Electrical Stress Control Tape 2220, 12 adapters, 3 instruction sheets and more
Withstands temperatures of 90° C (194° F)
