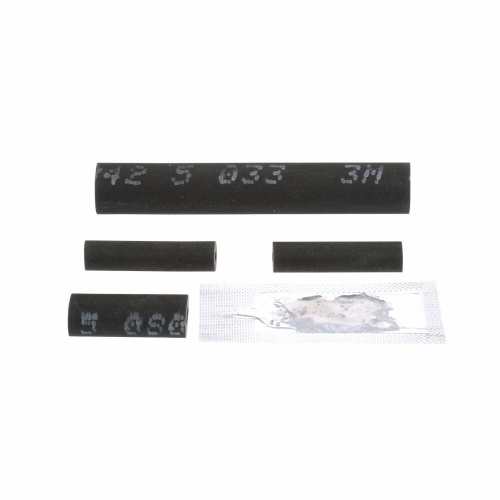

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 474260
3M 7100017508 - 3M Motor Lead Inline Pigtail Splice 5311, 1 kV, 10-4 AWG (feeder), 12-4 AWG (motor lead)
Normally In Stock
3M Motor Lead Inline Pigtail Splice 5311, 1 kV, 10-4 AWG (feeder), 12-4 AWG (motor lead) - 7100017508
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$173.11
Sale Price
$144.26
SOLD BY THE CASE (1 Case = 1 Kit)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Motor Lead Splices (Catalog Number 5311) are inline splices designed for motor lead connections on cables with a rated operating temperature of 90 deg C and an emergency overload rating of 130 deg C. These splices are suitable for cables sized 16 AWG to 500 kcmil with a maximum operating voltage of 1 kV. They are made for use on single conductor non-shielded cables and come in a black color. The kit includes 3 adapter sleeves and has a maximum bolt length of 1/2 in (12.7 mm). The splices have a maximum motor lead size of 4 AWG and a maximum feeder lead size of 4 AWG. The splice cover has an inner diameter of 12-8 AWG: 0.14 in / 8-4 AWG: 0.24 in (12-8 AWG: 3.6 mm / 8-4 AWG: 6.1 mm) and a length of 4-5 in (101.6-127.0 mm). The insulation outside diameter by conductor size ranges from 12-8 AWG: 0.17-0.24 in (4.3-6.1 mm) to 8-4 AWG: 0.30-0.36 in (7.6-9.1 mm). These splices are suitable for commercial and industrial construction applications. - 7100017508
Specifications
Color
Black
Manufacturer
3M
Splice Type
Inline
Component
Motor Lead Splice
Features
Designed for use with copper compression, 1 or 2 hole lugs
Has a durable EPDM rubber construction
