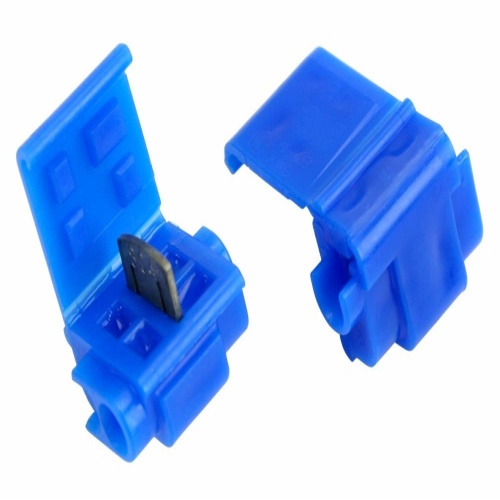

3M 7010398509 - Scotchlok™ Electrical IDC 804-100/BAG, Blue, 18-16 AWG,(solid/stranded), 14 AWG (stranded)
Normally In Stock
Code: 474239
Scotchlok™ Electrical IDC 804-100/BAG, Blue, 18-16 AWG,(solid/stranded), 14 AWG (stranded) - 7010398509
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$577.04
Sale Price
$480.87
SOLD BY THE CASE (1 Case = 1000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

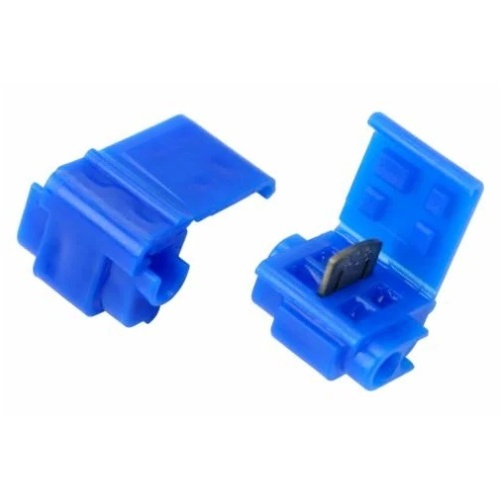

Scotchlok™ IDC Taps & Splices are plastic connectors with a blue color. They can accommodate conductor sizes of 14 AWG (stranded), 16 AWG, and 18 AWG. The maximum operating temperature is 90 ℃ (194 ℉) and they have a maximum recommended voltage rating of 600 V. These insulation displacement connectors are moisture resistant and flame retardant. The connectors are designed for run and tap connections and have an insulation outer diameter of 0.145 inches (3.7 mm). The product comes in a case quantity of 1000 and is compatible with the E-9BM or 9 in. Linemans Pliers for crimping. - 7010398509
Specifications
Color
Blue
Material
Plastic
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
1.5 mm²
Minimum Conductor Size (Imperial)
18 AWG
Component
IDC Taps & Splice
Maximum Conductor Size (Imperial)
14 AWG (Stranded)
Maximum Conductor Size (Metric)
2.5 mm² (Stranded)
Minimum Conductor Size (Metric)
1 mm²
Features
Blue, polypropylene-insulated connector electrically taps into a wire in mid-span without cutting
Suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring
Accommodates 18 to 14 AWG solid/stranded
RoHS 2011/65/EU Compliant
