Code: 474238

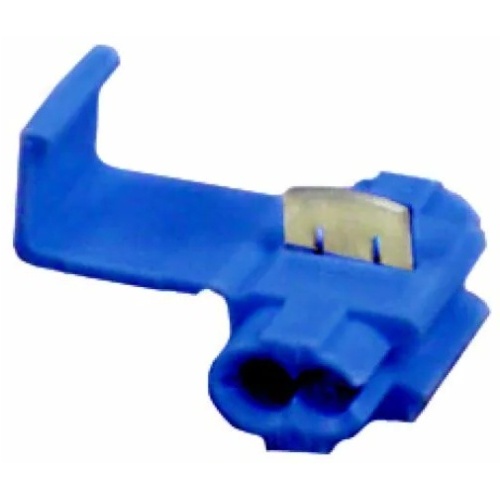

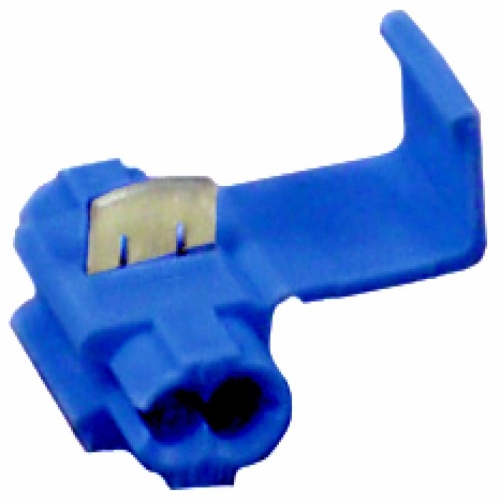

3M 7000132190 - Scotchlok™ Electrical IDC 801, In-Line Bullet Receptacle, 10
Normally In Stock
Scotchlok™ Electrical IDC 801, In-Line Bullet Receptacle, 10 - 7000132190
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$927.07
Sale Price
$772.56
SOLD BY THE CASE (1 Case = 10 Carton)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
IDC Taps & Splices by Scotchlok™ (801-BULK) are blue connectors made of plastic with a maximum operating temperature of 105 ℃ (221 ℉). They can accommodate stranded 14 AWG, 16 AWG, and 18 AWG conductors. These insulation displacement connectors have a voltage rating of 600 V and are suitable for low voltage applications. The connectors have a double run or tap connection type and are insulated with polypropylene. Recommended crimping tools are E-9BM or 9 in. Linemans Pliers. - 7000132190
Specifications
Color
Blue
Material
Plastic
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
1.5 mm²
Minimum Conductor Size (Imperial)
18 AWG
Component
IDC Taps & Splice
Insulation Material
Polypropylene
Maximum Conductor Size (Imperial)
14 AWG (Stranded)
Maximum Conductor Size (Metric)
2.5 mm² (Stranded)
Minimum Conductor Size (Metric)
1 mm²
Features
Blue, polypropylene-insulated connector is suitable for tap or parallel splicing
Suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring
Accommodates 18 to 16 AWG solid/stranded or 14 AWG stranded
UL Listed and RoHS 2011/65/EU Compliant
