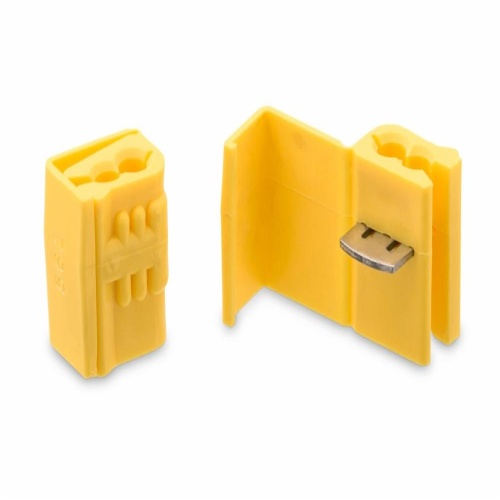

3M 7100166940 - Scotchlok™ Electrical Idc 562-Pouch, Yellow, 12 Awg,(Solid/Stranded), 10 Awg (Stranded), 100/Pouch
Normally In Stock
Code: 474233
Scotchlok™ Electrical Idc 562-Pouch, Yellow, 12 Awg,(Solid/Stranded), 10 Awg (Stranded), 100/Pouch - 7100166940
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$667.79
Sale Price
$556.49
SOLD BY THE CASE (1 Case = 1000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ IDC Taps & Splices, 3MCatalog Number 562-POUCH, are connectors designed for low voltage applications. They have an operating temperature range of up to 90 ℃ (194 ℉). The maximum conductor size is 10 AWG (stranded) and 12 AWG, and the insulation material is flame retardant polypropylene. They have a double run or tap connection type and can handle a maximum recommended voltage rating of 600V. The tap and run maximum insulation outer diameter is 0.19 in (4.82 mm). - 7100166940
Specifications
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Sub Brand
Scotchlok™
Minimum Conductor Size (Imperial)
12 AWG
Minimum Conductor Size (Metric)
4 mm²
Component
IDC Taps & Splice
Insulation Material
Polypropylene
Material
Insulator: FR Polypropylene
Material
U-Contact: Tin-Plated Brass
Maximum Conductor Size (Imperial)
10 AWG (Stranded)
Maximum Conductor Size (Imperial)
12 AWG
Maximum Conductor Size (Metric)
4 mm²
Maximum Conductor Size (Metric)
6 mm² (Stranded)
Features
Yellow, polypropylene-insulated connector is suitable for tap or parallel splicing
Rated for 32V applications
Accommodates 18 to 14 AWG solid/stranded
RoHS 2011/65/EU Compliant
