Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

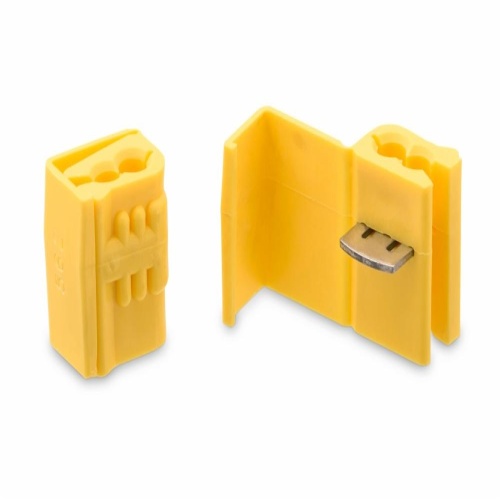

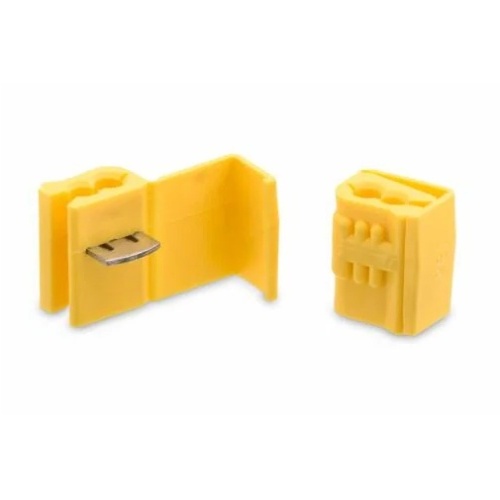

3M 7100003124 - Scotchlok™ Electrical IDC 562-BIN, Yellow, 12 AWG (solid/stranded), 10 AWG (stranded)
Normally In Stock
Code: 474232
Scotchlok™ Electrical IDC 562-BIN, Yellow, 12 AWG (solid/stranded), 10 AWG (stranded) - 7100003124
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$438.95
Sale Price
$365.79
SOLD BY THE CASE (1 Case = 1000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ IDC Taps & Splices are yellow connectors made of FR Polypropylene insulation material. They can handle a maximum operating temperature of 90 ℃ (194 ℉) with a maximum conductor size of 10 AWG (stranded) and 4 mm² (metric). These connectors are flame retardant and have a maximum recommended voltage rating of 600 V. The package contains 1000 connectors. - 7100003124
Specifications
Color
Yellow
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Sub Brand
Scotchlok™
Minimum Conductor Size (Imperial)
12 AWG
Minimum Conductor Size (Metric)
4 mm²
Component
IDC Taps & Splice
Insulation Material
Polypropylene
Material
Insulator: FR Polypropylene
Material
U-Contact: Tin-Plated Brass
Maximum Conductor Size (Imperial)
10 AWG (Stranded)
Maximum Conductor Size (Imperial)
12 AWG
Maximum Conductor Size (Metric)
4 mm²
Maximum Conductor Size (Metric)
6 mm² (Stranded)
Features
Yellow, polypropylene-insulated connector is suitable for tap or parallel splicing
Rated for 32V applications
Accommodates 18 to 14 AWG solid/stranded
RoHS 2011/65/EU Compliant
Downloads
No current downloads for this product. Please call us at 888-532-2706 for more information.
