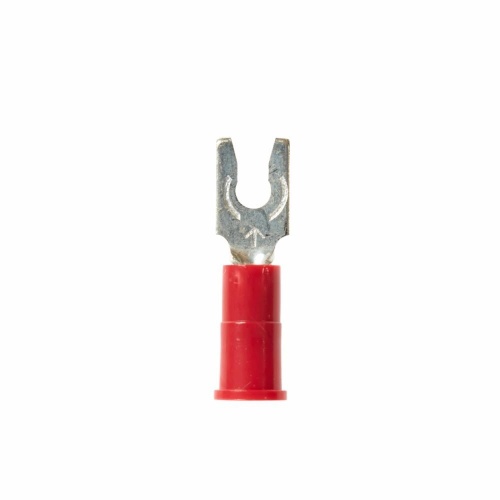

3M 7100164147 - Scotchlok™ Locking Fork, Vinyl Insulated Butted Seam MVU10-8FLK, Stud Size 8
Normally In Stock
Code: 473994
Scotchlok™ Locking Fork, Vinyl Insulated Butted Seam MVU10-8FLK, Stud Size 8 - 7100164147
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$584.94
Sale Price
$487.45
SOLD BY THE CASE (1 Case = 1000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ MVU10-8FLK Fork Terminals are a solution for wireless network infrastructure accessories. They have a locking fork type and can accommodate a maximum conductor size of 10 AWG (5.26 mm²) and a minimum conductor size of 12 AWG (3.31 mm²). The overall length is 1.03 in and the overall width is 0.32 in. The terminals have a barrel style of butted, with an inside diameter of 0.135 in. The insulation material is vinyl and the maximum insulation outer diameter is 0.25 in. The terminals are suitable for a stud size of #8 and have a stud diameter of 0.164 in (4.166 mm). The terminal style is locking and the maximum lock width is 0.35 in. The UL file number is E23438 and the CSA file number is LR22190. - 7100164147
Specifications
Manufacturer
3M
Sub Brand
Scotchlok™
Insulation Material
Vinyl
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Component
Fork Terminals
Terminal Type
Fork
Terminal Style
Locking
Overall Length (Imperial)
1.03 In
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Features
Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spring-like tongue firmly fits around the stud
Electrolytic copper construction offers good conductivity
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
