3M 7000133362 - Scotchlok™ Locking Fork Nylon Insulated, 100/bottle, MNG14-6FLX, spring-like tongue firmly fits around the stud
Normally In Stock
Code: 473927
Scotchlok™ Locking Fork Nylon Insulated, 100/bottle, MNG14-6FLX, spring-like tongue firmly fits around the stud - 7000133362
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$705.28
Sale Price
$587.73
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

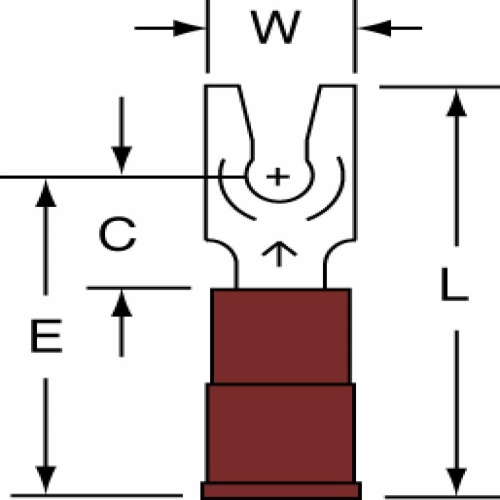

Scotchlok™ Fork Terminals (MNG14-6FLX) are made of plastic with nylon insulation grip. With a maximum operating temperature of 105℃ (221℉) and a maximum voltage rating of 600V, they are suitable for a wide range of applications. The terminals accommodate a minimum conductor size of 16 AWG (1.31 mm²) and a maximum conductor size of 14 AWG (2.08 mm²). They have a locking fork type and a butted barrel style with an inside diameter of 0.090 inch (2.29 mm). The terminals have an overall length of 0.89 inch (22.6 mm) and a width of 0.24 inch (6.09 mm). They come in a blue color. - 7000133362
Specifications
Color
Blue
Material
Plastic
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
221 °F
Maximum Operating Temperature (Celsius)
105 °C
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Component
Fork Terminals
Insulation Material
Nylon With Insulation Grip
Terminal Type
Fork
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Terminal Style
Locking
Overall Length (Imperial)
0.89 In
Overall Length (Metric)
22.6 mm
Features
Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, seamless brass sleeve offers easy insertion of wires
Spring-like tongue firmly fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
