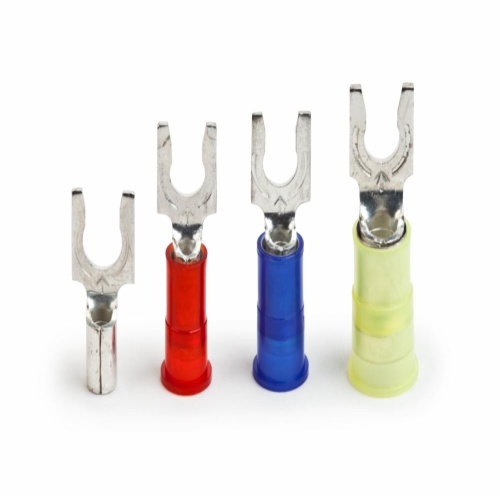

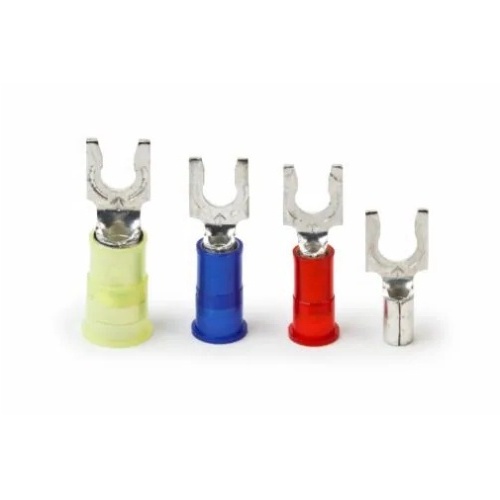

3M 7010398254 - Scotchlok™ Locking Fork Heatshrink, 25/bottle, MH18-8FLX, spring-like tongue firmly fits around the stud
Normally In Stock
Code: 473915
Scotchlok™ Locking Fork Heatshrink, 25/bottle, MH18-8FLX, spring-like tongue firmly fits around the stud - 7010398254
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$258.94
Sale Price
$215.78
SOLD BY THE CASE (1 Case = 125 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Fork Terminals (MH18-8FLX) are designed for secure and efficient electrical connections. With an overall length of 1 inch, these terminals can accommodate a maximum conductor size of 18 AWG and a minimum conductor size of 22 AWG. Made with heat shrink insulation, the terminals feature a durable brazed barrel style and a locking terminal style for added safety. They have a barrel inside diameter of 0.070 inch and are suitable for use with #8 studs. These fork terminals meet UL File Number E23438 and CSA File Number LR22190 standards. Dimension E is 0.70 inch, and clearance (C) is 0.15 inch. - 7010398254
Specifications
Manufacturer
3M
Overall Length (Imperial)
1 In
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Component
Fork Terminals
Maximum Conductor Size (Metric)
.0823 mm²
Terminal Type
Fork
Minimum Conductor Size (Metric)
0.326 mm²
Terminal Style
Locking
Insulation Material
Heat Shrink
Features
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spring-like tongue firmly fits around the stud
Electrolytic copper construction offers good conductivity
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
