3M 7010304204 - Scotchlok™ Locking Fork Heatshrink, 25/bottle, MH14-14FLX, spring-like tongue firmly fits around the stud
Normally In Stock
Code: 473910
Scotchlok™ Locking Fork Heatshrink, 25/bottle, MH14-14FLX, spring-like tongue firmly fits around the stud - 7010304204
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$250.30
Sale Price
$208.58
SOLD BY THE CASE (1 Case = 125 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

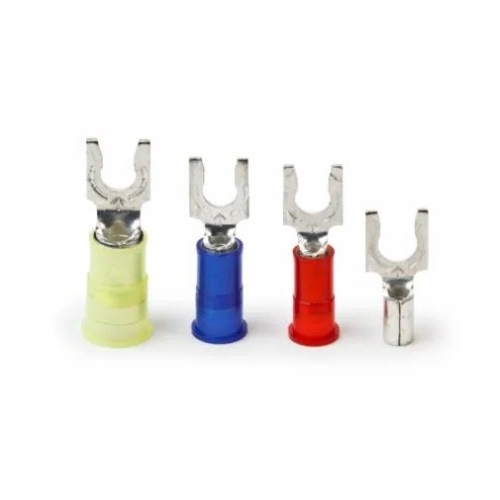

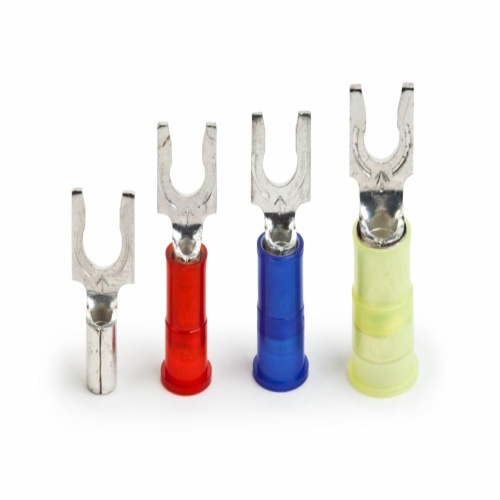

Scotchlok™ Fork Terminals (3MCatalog Number MH14-14FLX) are designed for secure and efficient electrical connections. With an overall length of 1.1 in and a maximum conductor size of 14 AWG (2.08 mm²), these terminals offer reliable performance. The heat shrink insulation material and locking fork type provide added safety. The terminals feature a brazed barrel style and a locking terminal style for easy installation. UL File Number E23438 and CSA File Number LR22190 further ensure their quality. - 7010304204
Specifications
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Component
Fork Terminals
Terminal Type
Fork
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Terminal Style
Locking
Insulation Material
Heat Shrink
Overall Length (Imperial)
1.1 In
Features
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spring-like tongue firmly fits around the stud
Electrolytic copper construction offers good conductivity
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
