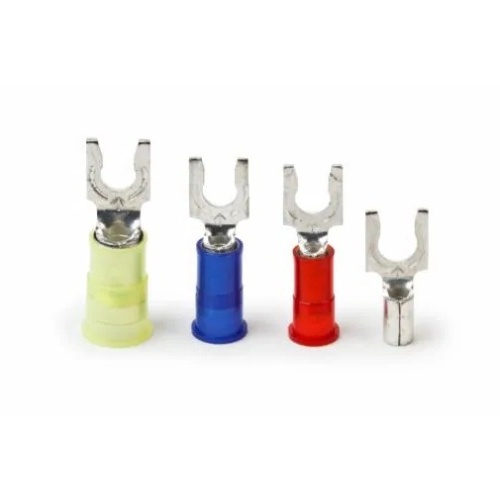

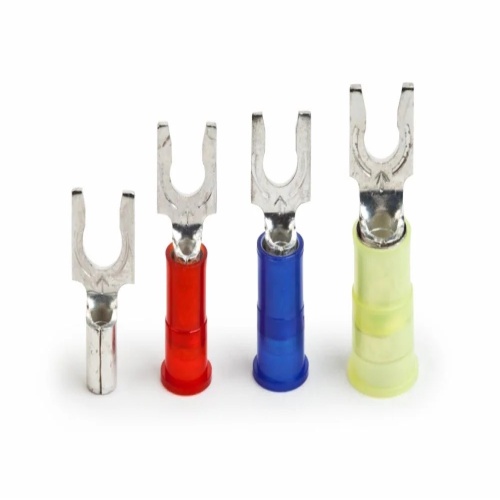

3M 7000133379 - Scotchlok™ Locking Fork Heatshrink, 25/bottle, MH10-10FLX, spring-like tongue firmly fits around the stud
Normally In Stock
Code: 473906
Scotchlok™ Locking Fork Heatshrink, 25/bottle, MH10-10FLX, spring-like tongue firmly fits around the stud - 7000133379
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$250.30
Sale Price
$208.58
SOLD BY THE CASE (1 Case = 125 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Fork Terminals are designed for a maximum operating temperature of 105 ℃ (221 ℉) and a maximum recommended voltage rating of 600 V. They can accommodate a maximum conductor size of 10 AWG (5.26 mm²) and a minimum conductor size of 12 AWG (3.31 mm²). The terminals have a heat shrink insulation material and a locking terminal style. The overall length is 1 inch (25.4 mm) and the overall width is 0.32 inch (8.12 mm). The fork terminals are yellow in color and made of plastic material. They are suitable for use with a #10 stud size. - 7000133379
Specifications
Color
Yellow
Material
Plastic
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
221 °F
Maximum Operating Temperature (Celsius)
105 °C
Overall Length (Imperial)
1 In
Overall Length (Metric)
25.4 mm
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Component
Fork Terminals
Terminal Type
Fork
Terminal Style
Locking
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Insulation Material
Heat Shrink
Features
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spring-like tongue firmly fits around the stud
Electrolytic copper construction offers good conductivity
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
