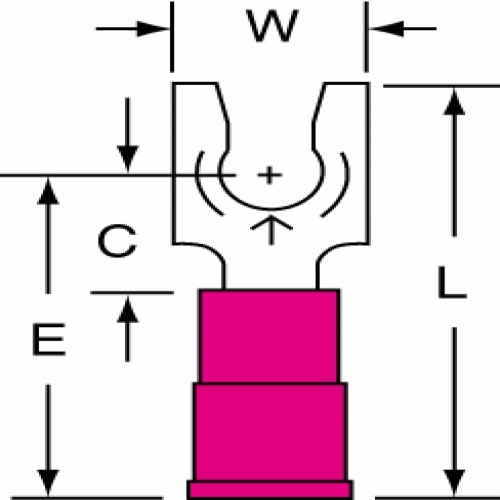

Scotchlok™ MVU10-10FX Fork Terminals are designed for wireless network infrastructure accessories. They have an overall length of 1.03 in and a maximum conductor size of 10 AWG (5.26 mm²). The minimum conductor size is 12 AWG (3.31 mm²). These terminals feature a vinyl insulation and a barrel style of butted. They are UL and CSA certified, with a maximum insulation outer diameter of 6.35 mm (0.25 in). The terminals have a #10 stud size and a standard fork type, with a 0.135 inch barrel inside diameter and a dimension E of 0.84 inch. - 7010320782
