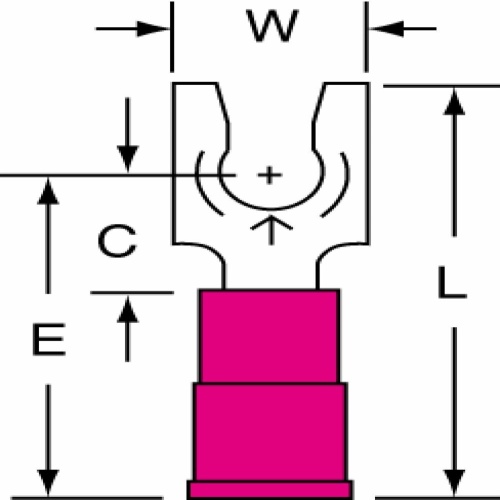

Scotchlok™ MVU18-8FX Fork Terminals are designed for wireless network infrastructure accessories. These terminals have a maximum conductor size of 18 AWG and a minimum conductor size of 22 AWG. The vinyl insulation material provides durability. The overall length is 0.9 inches and the overall width is 0.34 inches. The terminals have a barrel style of butted and a standard terminal style. The fork type is standard and can accommodate a #8 stud size. The terminal has a barrel inside diameter of 0.07 inches and a barrel length of 0.25 inches. The maximum insulation outer diameter is 0.145 inches. The UL file number is E70512 and the CSA file number is LR22190. The terminal's clearance measures 0.29 inches. It has a stud diameter of 0.164 inches (4.166 mm). - 7010291872
