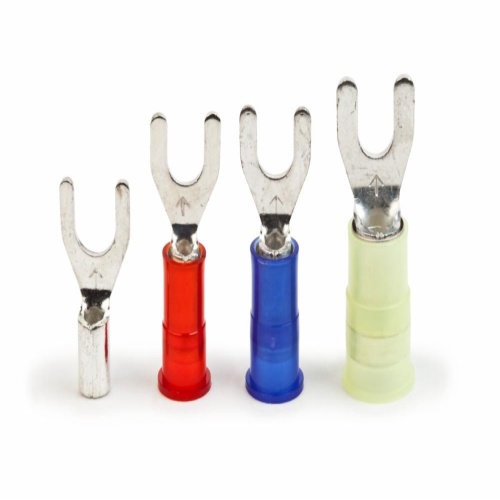

3M 7100165247 - Scotchlok™ Fork Vinyl Insulated, 100/bottle, MV18-6FX, wider-tongue,design for use on free-standing studs
Normally In Stock
Code: 473862
Scotchlok™ Fork Vinyl Insulated, 100/bottle, MV18-6FX, wider-tongue,design for use on free-standing studs - 7100165247
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$480.88
Sale Price
$400.73
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ MV18-6FX Fork Terminals are a solution for wireless network infrastructure accessories. With an overall length of 0.9 inches and a maximum conductor size of 18 AWG, they are suitable for various applications. The terminals have a vinyl insulation material and are designed with a standard fork type. They have a stud size of #6 and a barrel inside diameter of 0.070 inches. - 7100165247
Specifications
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Insulation Material
Vinyl
Terminal Style
Standard
Component
Fork Terminals
Maximum Conductor Size (Metric)
.0823 mm²
Terminal Type
Fork
Minimum Conductor Size (Metric)
0.326 mm²
Overall Length (Imperial)
0.9 In
Features
Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Wider-tongue design for use on free-standing studs
Electrolytic copper construction offers good conductivity
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
