Code: 473860

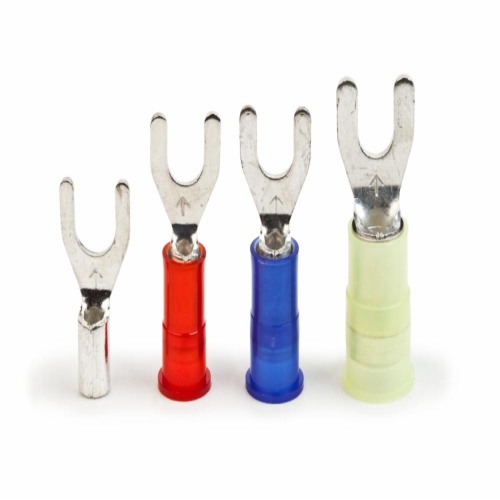

3M 7000133320 - Scotchlok™ Fork Vinyl Insulated, 100/bottle, MV14-8FX, wider-tongue,design for use on free-standing studs
Normally In Stock
Scotchlok™ Fork Vinyl Insulated, 100/bottle, MV14-8FX, wider-tongue,design for use on free-standing studs - 7000133320
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$107.05
Sale Price
$89.21
SOLD BY THE CASE (1 Case = 100 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Fork Terminals (MV14-8FX) are ideal for wireless network infrastructure accessories. These blue terminals have a maximum operating temperature of 105 ℃ (221 ℉) and can accommodate a maximum conductor size of 14 AWG (2.08 mm²). They are made of ETP copper and have a vinyl insulation material. With a recommended voltage rating of 600 V, these terminals are a reliable solution for various electrical applications. - 7000133320
Specifications
Color
Blue
Manufacturer
3M
Sub Brand
Scotchlok™
Insulation Material
Vinyl
Terminal Style
Standard
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Component
Fork Terminals
Material
ETP Copper
Terminal Type
Fork
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Overall Length (Imperial)
0.9 In
Overall Length (Metric)
22.86 mm
Features
Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Wider-tongue design for use on free-standing studs
Electrolytic copper construction offers good conductivity
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
