3M 7000133277 - Scotchlok™ Fork Nylon Insulated, 100/bottle, MNG18-6FX, wider-tongue,design for use on free-standing studs
Normally In Stock
Code: 473853
Scotchlok™ Fork Nylon Insulated, 100/bottle, MNG18-6FX, wider-tongue,design for use on free-standing studs - 7000133277
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$818.71
Sale Price
$682.26
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

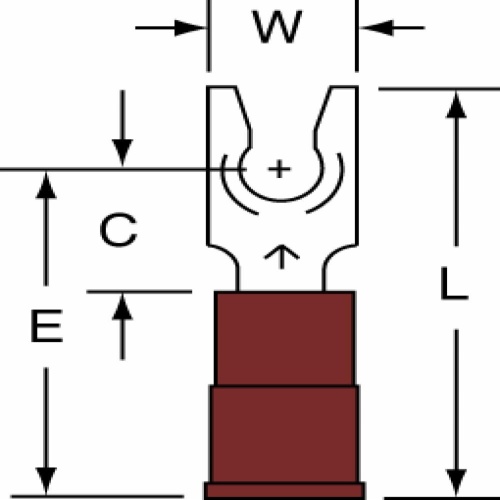

Scotchlok™ Fork Terminals MNG18-6FX are made of ETP Copper with nylon insulation grip. These red terminals have a maximum operating temperature of 105 ℃ (221 ℉) and a maximum voltage rating of 600 V. They can accommodate conductor sizes ranging from 18 AWG to 22 AWG. The terminals have an overall length of 0.89 in (22.6 mm) and an overall width of 0.34 in (8.6 mm). Their barrel style is butted and the terminal style is standard. They are designed for #6 stud size and have an overall insulation outer diameter of 0.145 in (3.7 mm). - 7000133277
Specifications
Color
Red
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
221 °F
Maximum Operating Temperature (Celsius)
105 °C
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Terminal Style
Standard
Component
Fork Terminals
Material
ETP Copper
Maximum Conductor Size (Metric)
.0823 mm²
Insulation Material
Nylon With Insulation Grip
Terminal Type
Fork
Minimum Conductor Size (Metric)
0.326 mm²
Overall Length (Imperial)
0.89 In
Overall Length (Metric)
22.6 mm
Features
Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, seamless brass sleeve offers easy insertion of wires
Wider tongue design for use on free-standing studs
Electrolytic copper construction offers good conductivity
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
