3M 7100164111 - Scotchlok™ Block Fork, Non-Insulated Brazed Seam M10-8FBK, Stud Size,8, suitable for use in a terminal block
Normally In Stock
Code: 473780
Scotchlok™ Block Fork, Non-Insulated Brazed Seam M10-8FBK, Stud Size,8, suitable for use in a terminal block - 7100164111
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$192.35
Sale Price
$160.29
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

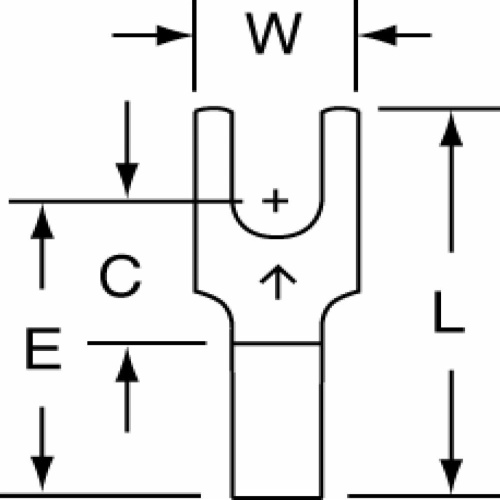

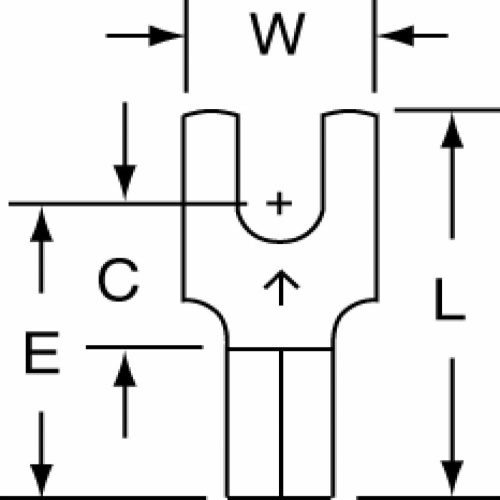

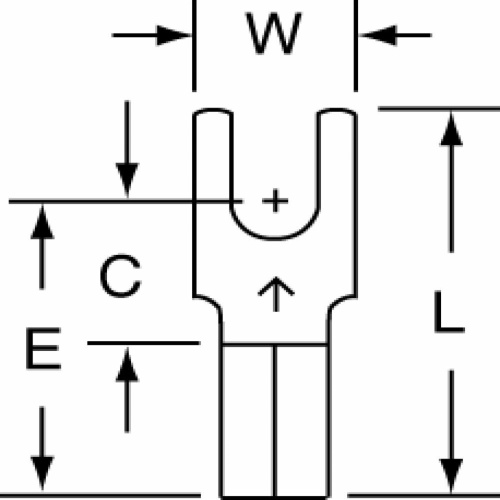

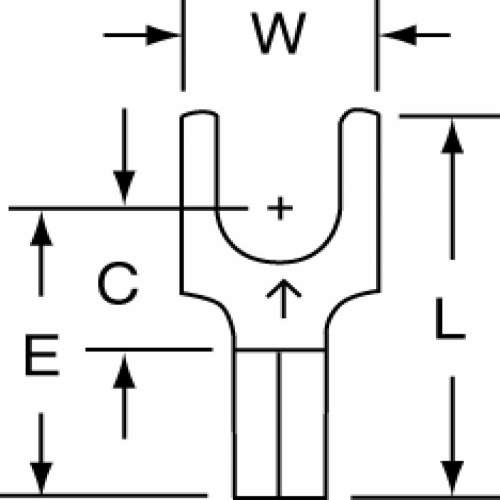

Scotchlok™ Fork Terminals (M10-8FBK) are non-insulated and ideal for electrical applications. These terminals have a maximum conductor size of 10 AWG (5.26 mm²) and a minimum conductor size of 12 AWG (3.31 mm²). The overall length is 0.73 inches and the overall width is 0.32 inches. With a brazed barrel style and a #8 stud size, these terminals offer excellent conductivity and durability. They are UL and CSA certified for safety. - 7100164111
Specifications
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Component
Fork Terminals
Terminal Type
Fork
Terminal Style
Block
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Overall Length (Imperial)
0.73 In
Insulation Material
Non-Insulated
