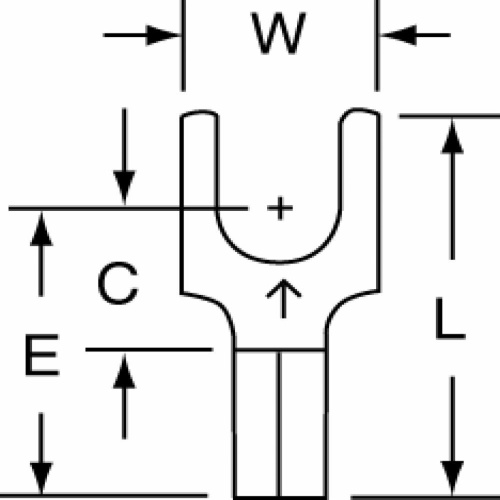

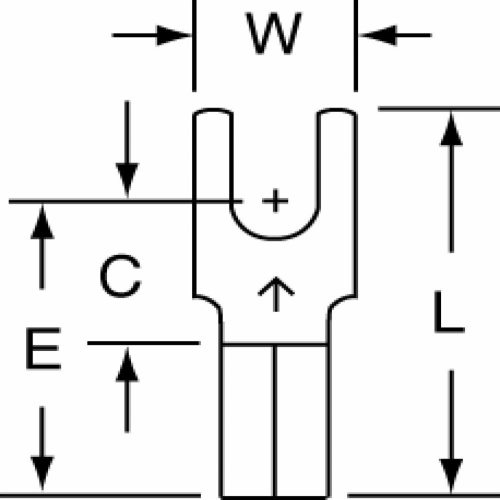

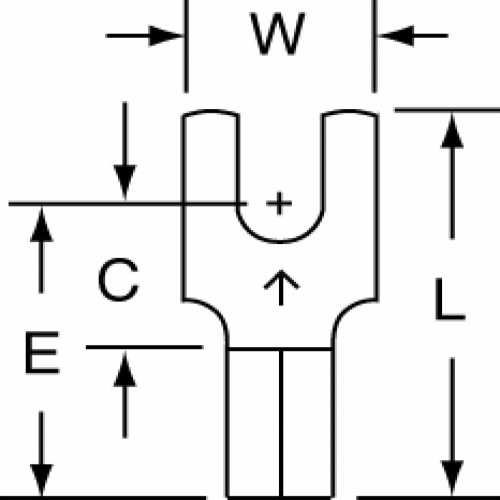

Scotchlok™ Fork Terminals (M10-10FBX) are non-insulated, block-style terminals. They have an overall length of 0.73 inches, a maximum conductor size of 10 AWG (imperial) or 5.26 mm² (metric), and a minimum conductor size of 12 AWG (imperial) or 3.31 mm² (metric). These terminals have a barrel style of brazed and a fork type of block. The stud size is #10, with a stud diameter of 0.19 inches (imperial) or 4.826 mm (metric). The overall width is 0.32 inches, and the terminal style is a block. UL file number E23438 and CSA file number LR22190 are associated with this product. The barrel inside diameter is 0.135 inches, and the dimension E is 0.54 inches. The clearance (C) is 0.29 inches. - 7010399939
