3M 7100164039 - Scotchlok™ Block Flanged Fork, Vinyl Insulated Butted Seam,MVU14-6FFBK, 16-14 AWG
Normally In Stock
Code: 473739
Scotchlok™ Block Flanged Fork, Vinyl Insulated Butted Seam,MVU14-6FFBK, 16-14 AWG - 7100164039
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$461.64
Sale Price
$384.70
SOLD BY THE CASE (1 Case = 1000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

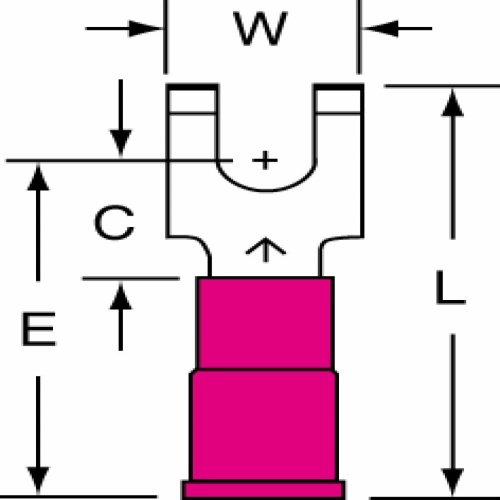

Scotchlok™ Fork Terminals, 3MCatalog Number MVU14-6FFBK, are flanged block terminals designed for reliable connections. These terminals have an overall length of 0.85 in, with a maximum conductor size of 14 AWG (2.08mm²) and a minimum conductor size of 16 AWG (1.31mm²). They are made of vinyl insulation material and have an overall width of 0.3 in. The connection width is 0.138 in (3.5 mm). - 7100164039
Specifications
Manufacturer
3M
Sub Brand
Scotchlok™
Insulation Material
Vinyl
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Component
Fork Terminals
Terminal Type
Fork
Overall Length (Imperial)
0.85 In
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Terminal Style
Flanged Block
Features
Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Suitable for use in a terminal block
Electrolytic copper construction offers good conductivity
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
