Code: 473611
3M 7000031410 - Scotchlok™ Copper Two Hole Long Barrel Lug 31172, up to 35 kV, 750 kcmil, Black
Normally In Stock
Scotchlok™ Copper Two Hole Long Barrel Lug 31172, up to 35 kV, 750 kcmil, Black - 7000031410
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$705.22
Sale Price
$587.68
SOLD BY THE CASE (1 Case = 6 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

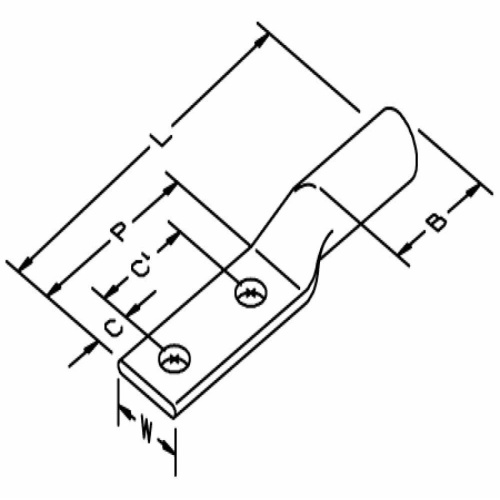

Compression Lugs by Scotchlok™ (3MCatalog Number 31172) are long barrel lugs made of copper with an overall length of 7 inches (177.8 mm). They have a maximum conductor size of 750 kcmil (380 mm²) and are suitable for copper conductors only. These lugs have two holes, measure 2.81 inches (71.5 mm) in barrel length, and have a pad width of 1.72 inches (43.7 mm). They are compatible with 1/2 inch studs and have a maximum operating voltage of 35 Kilovolt. Comes in a case quantity of 6. - 7000031410
Specifications
Color
Black
Component
Compression Lug
Material
Copper
Manufacturer
3M
Maximum Conductor Size (Imperial)
750 Kcmil
Maximum Conductor Size (Metric)
380 mm²
Overall Length (Metric)
177.8 mm
Overall Length (Imperial)
7"
Sub Brand
Scotchlok
Features
Long barrel ensures a secure fit and offers reliable performance
Barrel has colored stripes that help to indicate the wire range
Suitable for indoor and outdoor applications
Made of copper for good conductivity and tin plating for corrosion resistance
For up to 35 kV applications
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
