Code: 473609
3M 7000031447 - Scotchlok™ Copper Two Hole Long Barrel Lug 31168, up to 35 kV, 600 kcmil, Green
Normally In Stock
Scotchlok™ Copper Two Hole Long Barrel Lug 31168, up to 35 kV, 600 kcmil, Green - 7000031447
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$476.14
Sale Price
$396.78
SOLD BY THE CASE (1 Case = 6 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

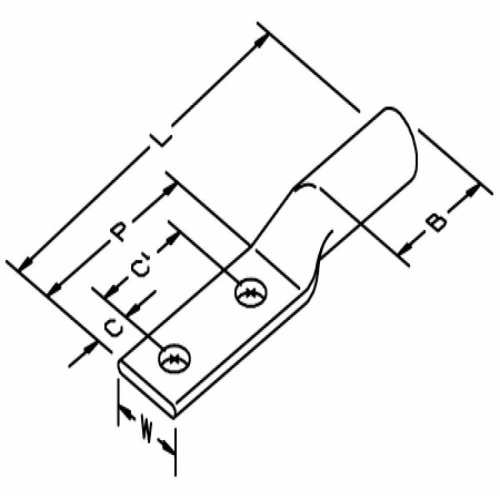

Compression Lugs from Scotchlok™ (31168) are long barrel lugs made of copper, with an overall length of 6.72 in (170.6 mm). They are green in color and designed for use with copper conductors only. With a maximum conductor size of 600 kcmil (300 mm²), these lugs have a stud size of 1/2 inch and a maximum operating voltage of 35 Kilovolt. They come in a case quantity of 6 and have a connector description of two-hole lug. - 7000031447
Specifications
Color
Green
Component
Compression Lug
Material
Copper
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
600 Kcmil
Overall Length (Imperial)
6.72 In
Maximum Conductor Size (Metric)
300 mm²
Overall Length (Metric)
170.6 mm
Features
Long barrel ensures a secure fit and offers reliable performance
Barrel has colored stripes that help to indicate the wire range
Suitable for indoor and outdoor applications
Made of copper for good conductivity and tin plating for corrosion resistance
For up to 35 kV applications
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
