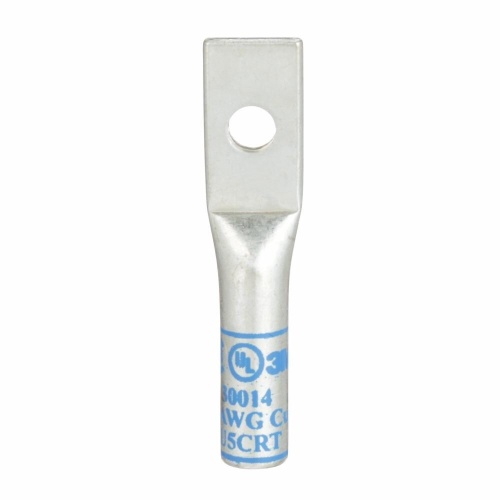

Scotchlok™ Compression Lugs, catalog number 30014, are compression lugs made of copper. They have an overall length of 1.78 inches (45.2 mm) and a maximum conductor size of 6 AWG. The lugs have a blue color and a standard barrel style with a barrel length of 0.86 inches (21.8 mm). They come in a case quantity of 50 and are compatible with copper conductors only. The lugs have an inside diameter of 0.19 inches (5.0 mm) and an outer diameter of 0.29 inches. They have one hole for mounting and are suitable for use with #10 stud sizes. The lugs have a pad width of 0.43 inches (11.0 mm) and a pad length of 0.75 inches (19.1 mm). The maximum operating voltage is 35 Kilovolt and the maximum installed length is 16.00 inches. These compression lugs are part of the 30000 series and are designed for use with 16 mm² (6 AWG) copper conductors. - 7100006701
